Hewlett Packard rp2430 | PA-RISC server

Post by **Morc** » Tue Feb 10, 2026 7:35 pm

To be filled by O.E.M.
Menšé vlákenko o takom volákom... PA-RISC serveri od swarma. Póvodne ze pražského školáceho centra HP Education Center.
Takťéž branduvaný jak HP 9000 A400, podľa toho o jak starú mašinu ide.

Špecifikačné záležitosti:
Model: hp server rp2430 (model string 9000/800/A400-6X)
Procesor: 1x PA-8700 650MHz, 64-bit PA-RISC
RAM: 896MB SDRAM po 5 stickoch
Disky: Seagate Cheetah 10K.7 ST336807LC & Maxtor ATLAS 10K IV 36SCA
Sloty a konektory: Twin Turbo PCI 2x, PCI 2x, Ultra2 Wide SCSI, Narrow Single Ended SCSI, 10/100BASE-T NIC, 10BASE-T LAN Console, Console UPS Port, dodatočná PCI ethernetka
Aktuálny systém: HP-UX B.11.23 U 9000/800 863809601 unlimited-user license

Chronologické záležitosti:
5.10.2025 - dovlečené z ByteFESTu 2025
30.12.2025 - pokusy s Leandrovou mašinou
10.2.2026 - prvé pokusy s mojou, prvé zdokumentuvaní

Vizuálne záležitosti:

Slovné záležitosti:

Code: Select all

Information Menu: Enter command > ALL

   Model: hp server rp2430 (model string 9000/800/A400-6X)

PROCESSOR INFORMATION

                       HVERSION  SVERSION              Processor
  Processor   Speed     Model    Model/Op  CVERSION      State
  ---------  --------  --------  --------  --------  -------------
      0      650  MHz   0x05e1    0x0491     2.  3   Active

  Central Bus Speed (in MHz)  :        120
  Software ID (dec)           :  863809601
  Software ID (hex)           : 0x337cb041
  Software Capability         : 0x01f0


COPROCESSOR INFORMATION

                    Coprocessor   Coprocessor        Coprocessor
       Processor       Model        Revision            State
      -----------   -----------   -----------     -----------------
           0        0x00000013             1        Functional

CACHE INFORMATION

       Processor    Instruction Cache Size    Data Cache Size
      -----------   -----------------------   ---------------
           0                750 KB                  1.5 MB

MEMORY INFORMATION

 WARNING:  Not enough error-free contiguous memory (GoodMem).  Refer to
            the ME command in the INFORMATION menu and the PDT
            command in the SERVICE menu for error information.


  MEMORY STATUS TABLE (MB) (Current Boot Status)

Slot 01  128M  Active
Slot 02  128M  Active
Slot 03  128M  Active
Slot 04  256M  Active

Slot 05  256M  Active
Slot 06   -
Slot 07   -
Slot 08   -

Subtotal 896M

   TOTAL =   896 MB
           ---------


                     Memory Installation Guidelines
                     ------------------------------

- DIMMs must be loaded in ascending slot order: 1, 2, 3, 4, 5, 6, 7, 8

   Active, Installed Memory          :        896  MB of SDRAM
   Deallocated Pages                 :          0  Pages
                                       -----------
   Available Memory                  :        896  MB

   Good Memory Required by OS        :       1008  MB

         Memory
   HVERSION  SVERSION
   -------- ----------
    0x09b0  0x00000900

I/O MODULE INFORMATION

                        Path   Slot                          IODC
Type                    (dec)  Number    HVERSION  SVERSION  Vers
----                    -----  ------    --------  --------  ----
System bus adapter      0                0x5820    0xb10     0x0
Local bus adapter       0/0    4         0x7820    0xa00     0x0
Local bus adapter       0/2    1         0x7820    0xa00     0x0
Local bus adapter       0/4    2         0x7820    0xa00     0x0
Local bus adapter       0/6    3         0x7820    0xa00     0x0

PCI DEVICE INFORMATION
                                Path              Vendor  Device  Bus  Slot
Description                     (dec)               Id      Id     #    #
-----------                     -----              ----    ----   ---  ---
Ethernet cntlr                  0/0/0/0           0x1011  0x19    0    Built_In
SCSI bus cntlr                  0/0/1/0           0x1000  0xb     0    Built_In
SCSI bus cntlr                  0/0/1/1           0x1000  0xb     0    Built_In
SCSI bus cntlr                  0/0/2/0           0x1000  0xf     0    Built_In
SCSI bus cntlr                  0/0/2/1           0x1000  0xf     0    Built_In
System peripheral               0/0/4/0           0x103c  0x128d  0    Built_In
Comp. ser cntlr                 0/0/4/1           0x103c  0x1048  0    Built_In
Ethernet cntlr                  0/4/0/0           0x1011  0x19    32   2

BOOT INFORMATION

   Processor           Boot ID
   ---------           -------
       0                  1

   Autoboot:             ON
   Autosearch:           ON
   Autostart:            OFF
   Fastboot:             OFF

   Primary boot path:    intscsia.15
                         0/0/1/1.15
                         0/0/01/01.f    (hex)
   Alternate boot path:  intscsib.15
                         0/0/2/1.15
                         0/0/02/01.f    (hex)
   Console path:         0/0/4/0.643
                         0/0/04/0.283   (hex)
   Keyboard path:        0/0/4/0.0
                         0/0/04/0.0     (hex)

   LAN Station Address:  00306e-2ce076

   Sun Aug  7 14:44:44 GMT 2016    (20:16:08:07:14:44:44)

FIRMWARE INFORMATION

   Firmware Version:          42.19

        Module              Revision
        ------              --------
        System Board        A24210
        PA 8700 CPU Module  2.3

FRU INFORMATION

FRU Name:            HAR_SYS_BD
Part Number:           A6889-60001
Serial Number:           40CC0GR0JJ
Physical Location:     00ffff0001ffff69
Engineering Date Code: 4210
Art Work Revision:     A2
Scan Revision:
FRU Specific Info:

FRU Name:            CRE_PCI_BD
Part Number:           A5570-60003
Serial Number:           40CC0ETQV4
Physical Location:     00ffff0002ffff69
Engineering Date Code: 4026
Art Work Revision:     A3
Scan Revision:
FRU Specific Info:

FRU Name:            HAR_GSP_BD
Part Number:           A6889-60002
Serial Number:           40CC0GS0MP
Physical Location:     000000ffff06ff85
Engineering Date Code: 4204
Art Work Revision:     A2
Scan Revision:
FRU Specific Info:

FRU Name:              DIMM_128
Part Number:           A5572-60001
Serial Number:         A56E03793529
Physical Location:     0000ff000001ff74
Engineering Date Code: 4123
Art Work Revision:     A4
Scan Revision:
FRU Specific Info:

FRU Name:              DIMM_128
Part Number:           A5572-60001
Serial Number:         A56E02499954
Physical Location:     0000ff000002ff74
Engineering Date Code: 3935
Art Work Revision:     A4
Scan Revision:
FRU Specific Info:

FRU Name:              DIMM_128
Part Number:           A5572-60001
Serial Number:         A56E03476416
Physical Location:     0000ff000003ff74
Engineering Date Code: 4123
Art Work Revision:     A4
Scan Revision:
FRU Specific Info:

FRU Name:              DIMM_256
Part Number:           KTH-NSVR512
Serial Number:
Physical Location:     0000ff000004ff74
Engineering Date Code:
Art Work Revision:
Scan Revision:
FRU Specific Info:

FRU Name:              DIMM_256
Part Number:           KTH-NSVR512
Serial Number:
Physical Location:     0000ff000005ff74
Engineering Date Code:
Art Work Revision:
Scan Revision:
FRU Specific Info:

Post by **Morc** » Tue Feb 10, 2026 9:54 pm

GSP alebo ináč povedané Guardian Service Processor, alebo RMC, teda... iLO, volado to volá DRAC, všeobecne ale IPMI na PA-RISC mašinách je celkom sranda.

Treba sa pichnúť do toho 10BASE-T LAN Console portu zezadu na mašine. Mašina nemosí byť zapatá!

Jak sme sa dostali do GSP:
0. Treba nastaviť síť na cielovej mašine na rovnakú subnetu jak je GSP na serveri (v našom prípade 10.32.1.*)
1. Treba preskenuvať subnetu (štítek totižto nepasuval s mašinou )

2. Použiť telnet, PuTTY, HyperTerminal alebo bárčo inakšé čo vyhovuje na natelnetuvaní
3. Zaloguvať sa jak nido a potom vybehnúť z console módu do GSP pomocou salutu (CTRL-E + CF, CTRL + B do GSP)

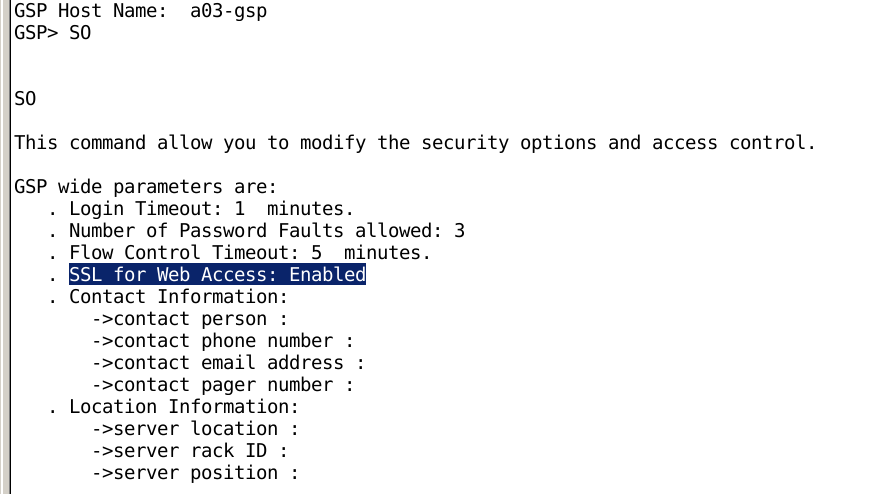

4. (volitelné) Príkazom SO je vhodné skontroluvať či web interface ide na HTTP porte :80 alebo na HTTPS :443

Post by **Morc** » Wed Feb 11, 2026 1:01 am

Do HP-UX najprv pojdeme cez single user mód lebo nevím čo za heslo je na serveri.

Reštart z GSP je celkom jednoduchý, stačí CTRL-B a potom RS pre reset.
Potom treba behnúť naspák do konzoly cez CO.

Code: Select all

Firmware Version  42.19

Duplex Console IO Dependent Code (IODC) revision 1

------------------------------------------------------------------------------
   (c) Copyright 1995-2001, Hewlett-Packard Company, All rights reserved
------------------------------------------------------------------------------

  Processor   Speed            State           CoProcessor State  Cache Size
  Number                                       State              Inst    Data
  ---------  --------   ---------------------  -----------------  ------------
      0      650  MHz   Active                 Functional         750 KB 1.5 MB

  Central Bus Speed (in MHz)  :        120
  Available Memory            :     917504  KB
  Good Memory Required        :    1031656  KB

   Primary boot path:    0/0/1/1.15
   Alternate boot path:  0/0/2/1.15
   Console path:         0/0/4/0.643
   Keyboard path:        0/0/4/0.0

WARNING: Not enough memory to boot to OS

 WARNING:  Not enough error-free contiguous memory (GoodMem).  Refer to
            the ME command in the INFORMATION menu and the PDT
            command in the SERVICE menu for error information.


Processor is booting from first available device.

To discontinue, press any key within 10 seconds.

Boot terminated.


---- Main Menu ---------------------------------------------------------------

     Command                           Description
     -------                           -----------
     BOot [PRI|ALT|<path>]             Boot from specified path
     PAth [PRI|ALT] [<path>]           Display or modify a path
     SEArch [DIsplay|IPL] [<path>]     Search for boot devices

     COnfiguration menu                Displays or sets boot values
     INformation menu                  Displays hardware information
     SERvice menu                      Displays service commands

     DIsplay                           Redisplay the current menu
     HElp [<menu>|<command>]           Display help for menu or command
     RESET                             Restart the system
----
Main Menu: Enter command or menu >

Mali by sme skončiť volade tu.

Pokračujeme príkazom BOOT kde potom potvrdíme interakciu s IPL a dočkáme na ISL prompt.

Code: Select all

Main Menu: Enter command > BOOT
Interact with IPL (Y, N, or Cancel)?> Y

Booting...
Boot IO Dependent Code (IODC) revision 1


HARD Booted.

ISL Revision A.00.44  Mar 12, 2003

ISL>

Teraz móžeme sprobuvať srandu jak ls, ale hlavne hpux -is kerým sa ide do single user módu.

Code: Select all

ISL> ls


    Utilities on this system are:

filename   type   start    size     created
=====================================================
HPUX       -12928 840      1024     06/10/27 14:23:07

ISL> hpux -is

Boot
: disk(0/0/1/1.15.0.0.0.0.0;0)/stand/vmunix
14442496 + 4435968 + 4259584 start 0x22f0e8

Po kratučkej chvilečke by sme mali skončiť v prompte.

Code: Select all

ISL> hpux -is

Boot
: disk(0/0/1/1.15.0.0.0.0.0;0)/stand/vmunix
14442496 + 4435968 + 4259584 start 0x22f0e8




alloc_pdc_pages: Relocating PDC from 0xf0f0000000 to 0x36b00000.
DoCalllist done

Memory Class Setup
-------------------------------------------------------------------------
Class     Physmem              Lockmem              Swapmem
-------------------------------------------------------------------------
System :  896 MB               896 MB               896 MB
Kernel :  896 MB               896 MB               896 MB
User   :  687 MB               597 MB               599 MB
-------------------------------------------------------------------------

gate64: sysvec_vaddr = 0xc0002000 for 2 pages
NOTICE: cachefs_link(): File system was registered at index 4.
NOTICE: nfs3_link(): File system was registered at index 7.

    System Console is on the Built-In Serial Interface
Logical volume 64, 0x3 configured as ROOT
Logical volume 64, 0x2 configured as SWAP
Logical volume 64, 0x2 configured as DUMP
    Swap device table:  (start & size given in 512-byte blocks)
        entry 0 - major is 64, minor is 0x2; start = 0, size = 4194304
Starting the STREAMS daemons-phase 1
Checking root file system.
log replay in progress
replay complete - marking super-block as CLEAN
Root check done.
Create STCP device files
     $Revision: vmunix:    B11.23_LR FLAVOR=perf Fri Mar 19 15:24:05 PST 2004 $
Memory Information:
    physical page size = 4096 bytes, logical page size = 4096 bytes
    Physical: 917504 Kbytes, lockable: 562972 Kbytes, available: 653560 Kbytes

/sbin/ioinitrc:
/dev/vg00/lvol1: 101 files, 0 icont, 7399 used, 214608 free (344 frags, 26783 bl
ocks)
/sbin/krs_sysinit:
NOTICE: mod_fs_reg: Cannot retrieve configured loading phase from KRS for module
: cifs. Setting to load at INIT

       * The module 'ipf' has been loaded.
       * The module 'dmphdsalua' has been loaded.
       * The module 'dmphpalua' has been loaded.
       * The module 'dmpjbod' has been loaded.
       * The module 'dmpapf' has been loaded.
       * The module 'dmpapg' has been loaded.
       * The module 'dmpap' has been loaded.
       * The module 'dmpaaa' has been loaded.
       * The module 'dmpaa' has been loaded.
       * The module 'fdd' has been loaded.
       * The module 'rng' has been loaded.



INIT: Overriding default level with level 's'

INIT: SINGLE USER MODE
(c)Copyright 1983-2003 Hewlett-Packard Development Company, L.P.
(c)Copyright 1979, 1980, 1983, 1985-1993 The Regents of the Univ. of California
(c)Copyright 1980, 1984, 1986 Novell, Inc.
(c)Copyright 1986-2000 Sun Microsystems, Inc.
(c)Copyright 1985, 1986, 1988 Massachusetts Institute of Technology
(c)Copyright 1989-1993  The Open Software Foundation, Inc.
(c)Copyright 1990 Motorola, Inc.
(c)Copyright 1990, 1991, 1992 Cornell University
(c)Copyright 1989-1991 The University of Maryland
(c)Copyright 1988 Carnegie Mellon University
(c)Copyright 1991-2003 Mentat Inc.
(c)Copyright 1996 Morning Star Technologies, Inc.
(c)Copyright 1996 Progressive Systems, Inc.


                  RESTRICTED RIGHTS LEGEND
Use, duplication, or disclosure by the U.S. Government is subject to
restrictions as set forth in sub-paragraph (c)(1)(ii) of the Rights in
Technical Data and Computer Software clause in DFARS 252.227-7013.


                  Hewlett-Packard Company
                  3000 Hanover Street
                  Palo Alto, CA 94304 U.S.A.

Rights for non-DOD U.S. Government Departments and Agencies are as set
forth in FAR 52.227-19(c)(1,2).
You have mail.

Value of TERM has been set to "vt100".
WARNING:  YOU ARE SUPERUSER !!

root@unknown:/#

Teraz už stačí len klasický passwd a malo by byť hotovo.

Code: Select all

root@unknown:/# passwd root
Changing password for root
New password:
Re-enter new password:
Passwd successfully changed

Post by **Morc** » Wed Feb 11, 2026 1:08 am

Code: Select all

Firmware Version  42.19

Duplex Console IO Dependent Code (IODC) revision 1

------------------------------------------------------------------------------
   (c) Copyright 1995-2001, Hewlett-Packard Company, All rights reserved
------------------------------------------------------------------------------

  Processor   Speed            State           CoProcessor State  Cache Size
  Number                                       State              Inst    Data
  ---------  --------   ---------------------  -----------------  ------------
      0      650  MHz   Active                 Functional         750 KB 1.5 MB

  Central Bus Speed (in MHz)  :        120
  Available Memory            :     917504  KB
  Good Memory Required        :    1031656  KB

   Primary boot path:    0/0/1/1.15
   Alternate boot path:  0/0/2/1.15
   Console path:         0/0/4/0.643
   Keyboard path:        0/0/4/0.0

WARNING: Not enough memory to boot to OS

 WARNING:  Not enough error-free contiguous memory (GoodMem).  Refer to
            the ME command in the INFORMATION menu and the PDT
            command in the SERVICE menu for error information.


Processor is booting from first available device.

To discontinue, press any key within 10 seconds.

10 seconds expired.
Proceeding...

Trying Primary Boot Path
------------------------
Booting...
Boot IO Dependent Code (IODC) revision 1


HARD Booted.

ISL Revision A.00.44  Mar 12, 2003

ISL booting  hpux

Boot
: disk(0/0/1/1.15.0.0.0.0.0;0)/stand/vmunix
14442496 + 4435968 + 4259584 start 0x22f0e8




alloc_pdc_pages: Relocating PDC from 0xf0f0000000 to 0x36b00000.
DoCalllist done

Memory Class Setup
-------------------------------------------------------------------------
Class     Physmem              Lockmem              Swapmem
-------------------------------------------------------------------------
System :  896 MB               896 MB               896 MB
Kernel :  896 MB               896 MB               896 MB
User   :  687 MB               597 MB               599 MB
-------------------------------------------------------------------------

gate64: sysvec_vaddr = 0xc0002000 for 2 pages
NOTICE: cachefs_link(): File system was registered at index 4.
NOTICE: nfs3_link(): File system was registered at index 7.

    System Console is on the Built-In Serial Interface
Logical volume 64, 0x3 configured as ROOT
Logical volume 64, 0x2 configured as SWAP
Logical volume 64, 0x2 configured as DUMP
    Swap device table:  (start & size given in 512-byte blocks)
        entry 0 - major is 64, minor is 0x2; start = 0, size = 4194304
Starting the STREAMS daemons-phase 1
Checking root file system.
file system is clean - log replay is not required
Root check done.
Create STCP device files
     $Revision: vmunix:    B11.23_LR FLAVOR=perf Fri Mar 19 15:24:05 PST 2004 $
Memory Information:
    physical page size = 4096 bytes, logical page size = 4096 bytes
    Physical: 917504 Kbytes, lockable: 562972 Kbytes, available: 648644 Kbytes

/sbin/ioinitrc:
/sbin/krs_sysinit:
NOTICE: mod_fs_reg: Cannot retrieve configured loading phase from KRS for module
: cifs. Setting to load at INIT

       * The module 'ipf' has been loaded.
       * The module 'dmphdsalua' has been loaded.
       * The module 'dmphpalua' has been loaded.
       * The module 'dmpjbod' has been loaded.
       * The module 'dmpapf' has been loaded.
       * The module 'dmpapg' has been loaded.
       * The module 'dmpap' has been loaded.
       * The module 'dmpaaa' has been loaded.
       * The module 'dmpaa' has been loaded.
       * The module 'fdd' has been loaded.
       * The module 'rng' has been loaded.


/sbin/bcheckrc:
Checking for LVM volume groups and Activating (if any exist)
Volume group "/dev/vg00" has been successfully changed.
Resynchronized volume group /dev/vg00
Checking hfs file systems
/sbin/fsclean: /dev/vg00/lvol1 (mounted) ok
HFS file systems are OK, not running fsck
Checking vxfs file systems
UX:vxfs fsck: INFO: V-3-20913: /dev/vg00/lvol3:sanity check: root file system OK
 (mounted read/write)

Cleaning /etc/ptmp...
(c)Copyright 1983-2003 Hewlett-Packard Development Company, L.P.
(c)Copyright 1979, 1980, 1983, 1985-1993 The Regents of the Univ. of California
(c)Copyright 1980, 1984, 1986 Novell, Inc.
(c)Copyright 1986-2000 Sun Microsystems, Inc.
(c)Copyright 1985, 1986, 1988 Massachusetts Institute of Technology
(c)Copyright 1989-1993  The Open Software Foundation, Inc.
(c)Copyright 1990 Motorola, Inc.
(c)Copyright 1990, 1991, 1992 Cornell University
(c)Copyright 1989-1991 The University of Maryland
(c)Copyright 1988 Carnegie Mellon University
(c)Copyright 1991-2003 Mentat Inc.
(c)Copyright 1996 Morning Star Technologies, Inc.
(c)Copyright 1996 Progressive Systems, Inc.


                  RESTRICTED RIGHTS LEGEND
Use, duplication, or disclosure by the U.S. Government is subject to
restrictions as set forth in sub-paragraph (c)(1)(ii) of the Rights in
Technical Data and Computer Software clause in DFARS 252.227-7013.


                  Hewlett-Packard Company
                  3000 Hanover Street
                  Palo Alto, CA 94304 U.S.A.

Rights for non-DOD U.S. Government Departments and Agencies are as set
forth in FAR 52.227-19(c)(1,2).

/sbin/auto_parms: checking network for DHCP server (see /etc/auto_parms.log)


     HP-UX Start-up in progress
     __________________________

     Configure system crash dumps ........................................ OK
     Removing old vxvm files ............................................. OK
     VxVM INFO V-5-2-3360 VxVM device node check ......................... OK
     VxVM INFO V-5-2-3362 VxVM general startup ........................... OK
     VxVM INFO V-5-2-3366 VxVM reconfiguration recovery .................. OK
     Mount file systems .................................................. OK
     Remounting Root File System ......................................... OK
     Setting hostname .................................................... OK
     Start Kernel Logging facility ....................................... OK
     Set privilege group ................................................. N/A
     Display date ........................................................ N/A
     Copy processor logs to /var/tombstones .............................. OK
     Save system crash dump if needed .................................... N/A
     Start evp ........................................................... OK
     Enable auxiliary swap space ......................................... OK
     Start syncer daemon ................................................. OK
     Start Utmp Daemon : manages User Accounting Database ................ OK
     Configure Loopback interfaces (lo0) ................................. OK
     VxVM INFO V-5-2-3370 VxVM volume recovery start ..................... OK
     Configuring all unconfigured software filesets ...................... OK
     Configuring PFIL .................................................... OK
     Starting IPFilter ................................................... OK
     Configuring Install Time Security ................................... N/A
     Recover editor crash files .......................................... OK
     Clean UUCP .......................................................... OK
     List and/or clear temporary files ................................... OK
     Clean up old log files .............................................. OK
     Start system message logging daemon ................................. OK
     Start pty allocator daemon .......................................... OK
     Configuring OLA/R interface ......................................... N/A
     Start network tracing and logging daemon ............................ OK
     Configure HP igelan Gigabit Ethernet interfaces ..................... OK
     Configure HP iether 100BT/Gigabit Ethernet interfaces ............... OK
     Configure HP gelan Gigabit Ethernet interfaces ...................... OK
     Create PCI FDDI device files. ....................................... OK
     Configure HP 100BASE-T interfaces ................................... OK
     Configure VLAN interfaces ........................................... OK
     Configure LAN interfaces ............................................ OK
     Configure LAN interfaces for IPv6 ................................... OK
     Starting DHCPv6 Server daemon ....................................... N/A
     Configuring DHCPv6 Interfaces ....................................... OK
     Start name server daemon ............................................ N/A
     Starting HP-UX Secure Shell ......................................... OK
     Start NFS core subsystem ............................................ OK
     Start NIS+ server subsystem ......................................... OK
     Start NIS+ client subsystem ......................................... OK
     Start NIS server subsystem .......................................... OK
     Start ldap client daemon ............................................ N/A
     Start NIS/LDAP server subsystem ..................................... N/A
     Start NIS client subsystem .......................................... OK
     Start NFS client subsystem .......................................... OK
     Start the Trusted Mode with NIS+ subsystem .......................... N/A
     Start multicast routing daemon ...................................... N/A
     Start Internet services daemon ...................................... OK
     Start dynamic routing daemon ........................................ N/A
     Start router discover protocol daemon ............................... N/A
     Configuring PPP Interface ........................................... OK
     Configuring PPPoE ................................................... N/A
     Start RARP protocol daemon .......................................... N/A
     Start remote system status daemon ................................... N/A
     Start IPv6 router advertisement daemon .............................. N/A
     Starting mail daemon ................................................ OK
     Starting cfengine's cfservd daemon .................................. N/A
     Starting syslog-ng daemons .......................................... N/A
     Starting outbound connection daemons for DDFA software .............. N/A
     Starting sfmdb PostgreSQL daemons ................................... OK
     Start SNMP Master Network Management daemon ......................... OK
     Start OSPF MIB Network Management subAgent .......................... N/A
     Start SNMP HP-UNIX Network Management subAgent ...................... OK
     Start SNMP IPv6 Network Management subAgent ......................... OK
     Start SNMP MIB-2 Network Management subAgent ........................ OK
     Start Native Adapter Agent .......................................... OK
     Start SNMP Trap Dest Network Management subAgent .................... OK
     Start HA cluster SNMP subagent ...................................... OK
     Start DCE daemons ................................................... N/A
     Start SNMP PCI FDDI Network Management subAgent ..................... OK
     Start RPC daemon if needed .......................................... OK
     Start CIM cimserver subsystem ....................................... OK
     Initialize Instant Capacity ......................................... N/A
     Starting ISEE hpservices mad daemon. ................................ N/A
     Start Runner ........................................................ N/A
     Starting X Font Server at TCP port 7000 ............................. N/A
     Start vt daemon ..................................................... N/A
     Start time synchronization .......................................... OK
     Start accounting .................................................... N/A
     Install/Load XF86 DLKM Helper Modules ............................... N/A
     Starting the password/group assist subsystem ........................ OK
     Starting HP Disk Array Manager daemons. ............................. OK
     Start print spooler ................................................. N/A
     Start clock daemon .................................................. OK
     Run Security Patch Check Utility .................................... N/A
     Start diagnostic subsystem .......................................... OK
     Start environment monitoring daemon ................................. OK
     Start auditing subsystem ............................................ N/A
     Start audio server daemon ........................................... N/A
     Start Distributed Single Logical Screen daemon ...................... N/A
     Start USB hub daemon ................................................ OK
     SAM System administration configuration ............................. OK
     OVPA performance software is being started. ......................... OK
     Configure PRM -or- Configure and Enable PRM ......................... N/A
     Start Workload Manager subsystem .................................... N/A
     Initialize Software Distributor agent daemon ........................ OK
     Starting the System Management HomePage server ...................... OK
     Starting the gWLM Agent ............................................. N/A
     Starting CIFS Client ................................................ N/A
     Configure HP RAID SA interfaces ..................................... N/A
     Copy processor logs to /var/tombstones .............................. OK
     Creating any missing lvm configuration backups..... ................. OK
     Starting Event Monitoring Service ................................... OK
     Start EMS SNMP subagent ............................................. OK
     Configure HP Fibre Channel Mass Storage interfaces .................. OK
     Configuring Ultra320 SCSI Mass Storage interfaces ................... N/A
     Starting the Winbind Daemon ......................................... N/A
     Starting the RST EMS listener ....................................... N/A
     Configure HP Fibre Channel Tachyon TL/TS Mass Storage interfaces .... OK
     Configuring HP Fibre Channel FCD Mass Storage interfaces ............ OK
     VxVM VVR INFO V-5-2-3502 Starting Communication Daemon .............. N/A
     VxVM VVR INFO V-5-4-2409 Starting VRAS daemon ....................... N/A
     VxVM VVR INFO V-5-4-2409 Starting VxRSync daemon .................... N/A
     Starting VERITAS Enterprise Administrator Service (vxsvc) ........... OK
     Start NFS server subsystem .......................................... OK
     Start X print server(s) ............................................. N/A
     Start Highly Available cluster ...................................... N/A
     Starting HP-UX Apache-based Web Server .............................. N/A
     Starting HP-UX Tomcat-based Servlet Engine .......................... N/A
     Starting HP-UX Webmin-based Admin ................................... N/A
     Starting the HPUX Webproxy subsystem ................................ N/A
     Starting HP-UX XML Web Server Tools ................................. OK
     Start kwdbd ......................................................... N/A
     Start NDDB Comm Server .............................................. N/A
     Starting OVTrcSrv... ................................................ OK
     Starting OpenView ................................................... OK
     Start CDE login server .............................................. OK
     Starting the amgrd subsystem ........................................ N/A
     Starting PRNGD (Pseudo Random Number Generator Daemon) .............. OK
     Starting Control Daemon ............................................. N/A

The system is ready.

GenericSysName [HP Release B.11.23] (see /etc/issue)
Console Login:

Code: Select all

root@a03:/# diskinfo /dev/rdsk/c1t15d0
SCSI describe of /dev/rdsk/c1t15d0:
             vendor: SEAGATE
         product id: ST336807LC
               type: direct access
               size: 35843686 Kbytes
   bytes per sector: 512
root@a03:/# diskinfo /dev/rdsk/c3t15d0
SCSI describe of /dev/rdsk/c3t15d0:
             vendor: MAXTOR
         product id: ATLAS10K4_36SCA
               type: direct access
               size: 35916548 Kbytes
   bytes per sector: 512

Code: Select all

root@a03:/# logins
nobody          -2      nogroup         -2
root            0       sys             3
daemon          1       daemon          5
bin             2       bin             2
sys             3       sys             3
adm             4       adm             4
uucp            5       sys             3
lp              9       lp              7
nuucp           11      nuucp           11
hpdb            27      other           1       ALLBASE
www             30      other           1
smbnull         101     hpsmh           101     DO NOT USE OR DELETE - needed by
 Samba
hpsmh           102                     102     System Management Homepage
sfmdb           103     users           20
sshd            104                     104     sshd privsep
iwww            105     other           1
owww            106     other           1

Hewlett Packard rp2430 | PA-RISC server

Hewlett Packard rp2430 | PA-RISC server

Dobíjaní sa do GSP na HP rp2430

Dobíjaní sa do HP-UX

Celý štart + volačo navyše
