zdá sa že GCT používa na ich GDM(7243QT) SoM deskách úžasný baud 921600...
Boot proces od nuly
Code: Select all
ETH_EN(GPE16): 1(dflt)->0(set-low)->mdelay(100)->1(set-high)
U-Boot 2010.09 (Nov 02 2017 - 10:28:18)GCT GDM7243
Build Info:
date: 2017/11/02-10:28:21
user: swdev@sw-Vostro-3900
svnr:
src: /home2/swdev/GCT_UBOOT/GCT_UBOOT_GDM_SVN360_CAT6
ver: 0.54_V1.0.3
DRAM: 128 MiB (wbd-p2) 1Gb
NAND: ECC 4bit
maf_id : 0x000000ad, dev_id : 0x000000aa
Pagesize : 2Kbytes
Address cycle : 5
Ecc : 4bit(size : 1a, addr : 826)
256 MiB
Bad block table found at page 131008, version 0x01
Bad block table found at page 130944, version 0x01
In: serial
Out: serial
Err: serial
Net: 001cc910 Realtek8211 PHYCR1: 00002118-0000211c Rx delay: 0x00802300
PHYCR2:0x0863->0x0842 mii0
Hit Ctrl+S key to stop autoboot: 0
cmmnv offset: 00020000
---------------------
hdr chksum : 0xa7140766
magic : 0xcafebabe
timstamp : 0x00000041
data chksum : 0x7e23e583
data size : 0x0001ffdc
---------------------
cmmnv offset: 00040000
---------------------
hdr chksum : 0xae9107cc
magic : 0xcafebabe
timstamp : 0x0000003e
data chksum : 0x8d73db97
data size : 0x0001ffdc
---------------------
cmnnv current block is : 0
---------------------
zone data offset: 0x0a000000
---------------------
get zmtel zone info:
crc32_sum :0x0D4D0142
magic :0x5A4D5348
runstatus :0x00000000
bootstatus :0x00000000
---------------------
---------------------
Status=Running...
---------------------
---------------------
hdr chksum : 0x8dcd05de
magic : 0xcafebabe
timstamp : 0x00000002
data chksum : 0x15227e7d
data size : 0x0024a280
---------------------
---------------------
hdr chksum : 0x8db805dd
magic : 0xcafebabe
timstamp : 0x00000001
data chksum : 0x15227e7d
data size : 0x0024a280
---------------------
select partition
part name : linux
offset : 0x00a00000
size : 0x00400000
---------------------
hdr chksum : 0x9ec706b0
magic : 0xcafebabe
timstamp : 0x00000004
data chksum : 0x978d16fc
data size : 0x0034be20
---------------------
---------------------
hdr chksum : 0x9d10069a
magic : 0xcafebabe
timstamp : 0x00000002
data chksum : 0x809116fc
data size : 0x0034be1f
---------------------
select partition
part name : tk
offset : 0x04e00000
size : 0x00500000
---------------------
hdr chksum : 0x8cb70563
magic : 0xcafebabe
timstamp : 0x00000003
data chksum : 0xa2db4935
data size : 0x01000000
---------------------
---------------------
hdr chksum : 0x8c8d0561
magic : 0xcafebabe
timstamp : 0x00000001
data chksum : 0xa2db4935
data size : 0x01000000
---------------------
select partition
part name : rootfs
offset : 0x01200000
size : 0x01e00000
---------------------
hdr chksum : 0x9ec706b0
magic : 0xcafebabe
timstamp : 0x00000004
data chksum : 0x978d16fc
data size : 0x0034be20
---------------------
---------------------
hdr chksum : 0x9d10069a
magic : 0xcafebabe
timstamp : 0x00000002
data chksum : 0x809116fc
data size : 0x0034be1f
---------------------
select partition
part name : tk
offset : 0x04e00000
size : 0x00500000
Part Kernel:0 will do crc check
Data checksum is OK!!!
Part Rootfs:0 will do crc check
Data checksum is OK!!!
Part Tk:0 will do crc check
Data checksum is OK!!!
bootargs (default)
## Booting kernel from Legacy Image at d05fffc0 ...
Image Name: Linux-3.10.0-uc0
Image Type: ARM Linux Kernel Image (uncompressed)
Data Size: 2400832 Bytes = 2.3 MiB
Load Address: d0600000
Entry Point: d0600000
Verifying Checksum ... OK
Loading Kernel Image ... OK
OK
Starting kernel ...
Uncompressing Linux... done, booting the kernel.
Booting Linux on physical CPU 0x0
Initializing cgroup subsys cpu
Initializing cgroup subsys cpuacct
Linux version 3.10.0-uc0 (swdev@sw-Vostro-3900) (gcc version 4.7.3 (Buildroot 2013.08.1) ) #1 Wed Jan 17 16:44:46 CST 2018
CPU: ARMv7 Processor [410fc074] revision 4 (ARMv7), cr=12c53c7d
CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache
Machine: GCT GDM7243
Boot device: nand
boot mem size: 80MB
READ ONLY FILESYSTEM
FW Checksum: enable
Active linux : linux
Active rootfs: rootfs
Active tk : tk
Memory policy: ECC disabled, Data cache writeback
CPU: GDM7243QT R0B [0x72430100]
ARM:
CR: 12c53c7d
ACR: 00006040
CPU: xtal 19.200 MHz, pll 833.280 MHz arm 833.280 MHz, clk(1x) 104.160 MHz
CPU: All CPU(s) started in SVC mode.
Built 1 zonelists in Zone order, mobility grouping on. Total pages: 20320
Kernel command line: console=ttyS0,921600 boot=nand mem=80M ubi.mtd=10,2048 root=ubi0:rootfs ro rootfstype=ubifs mtdparts=gdm7243:512k(u-boot),512k(env),1m(lte1nv),1m(lte2nv),1m(wmnv),1m(cmnnv),1m(cmnnv2),4m(rev1),4m(linux),4m(linux2),30m(rootfs),30m(rootfs2),5m(tk),5m(tk2),35m(update),4m(cfg),1m(factory),32m(syslog),1m(zone) bl_ver=0.54_V1.0.3 lcd=none checksum=enable active=linux,rootfs,tk
PID hash table entries: 1024 (order: 0, 4096 bytes)
Dentry cache hash table entries: 16384 (order: 4, 65536 bytes)
Inode-cache hash table entries: 8192 (order: 3, 32768 bytes)
Memory: 80MB = 80MB total
Memory: 75656k/75656k available, 6264k reserved, 0K highmem
Virtual kernel memory layout:
vector : 0xffff0000 - 0xffff1000 ( 4 kB)
fixmap : 0xfff00000 - 0xfffe0000 ( 896 kB)
vmalloc : 0xd5800000 - 0xff000000 ( 664 MB)
lowmem : 0xd0000000 - 0xd5000000 ( 80 MB)
modules : 0xcf000000 - 0xd0000000 ( 16 MB)
.text : 0xd0008000 - 0xd04213cc (4197 kB)
.init : 0xd0422000 - 0xd0440744 ( 122 kB)
.data : 0xd0442000 - 0xd04e2180 ( 641 kB)
.bss : 0xd04e5000 - 0xd0558648 ( 462 kB)
SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
NR_IRQS:64
[CLK] 1x:-1 is 1:104160000
[CLK] timers:-1 is 1:0
gdm_set_mode
CLOCK_EVT_MODE_SHUTDOWN
gdm_set_mode
CLOCK_EVT_MODE_PERIODIC
sched_clock: 32 bits at 32kHz, resolution 30517ns, wraps every 131071999ms
RTC: secondary(external) 32.768KHz osc
RTC Interrupt Enabled!
rtc_boot_base=00044519
console [ttyS0] enabled
Calibrating delay loop... 1652.73 BogoMIPS (lpj=826368)
pid_max: default: 32768 minimum: 301
Mount-cache hash table entries: 512
CPU: Testing write buffer coherency: ok
Setting up static identity map for 0xd0323638 - 0xd0323690
SYS_STA: 0x3(POR)
NET: Registered protocol family 16
DMA: preallocated 256 KiB pool for atomic coherent allocations
Build Info:
date: 2018/01/17-16:44:06
user: swdev@sw-Vostro-3900
svnr: r ()
pkgv: 0.60.3.3.0
appv: 0.60.3.3.0
src: /home2/swdev/GCT/cat6_bypass_kaicheng_0117/GCT_SDK0.57.3.2.0_CAT6_BYPASS
Config Info:
PRODUCT: gdm7243qt
PLATFORM_STANDALONE
HZ=1000
NET_NATQ2
NET_VLANQ
RTC_TIMER
PM_IDLE
PM_IDLE_DFRD_TIMER
IPC_CACHEABLE
DDR: id=6(ELPIDA) rev=2,0
GDM HL IF(v0.6) initialized
bio: create slab <bio-0> at 0
Switching to clocksource rtccs
NET: Registered protocol family 2
TCP established hash table entries: 1024 (order: 1, 8192 bytes)
TCP bind hash table entries: 1024 (order: 0, 4096 bytes)
TCP: Hash tables configured (established 1024 bind 1024)
TCP: reno registered
UDP hash table entries: 256 (order: 0, 4096 bytes)
UDP-Lite hash table entries: 256 (order: 0, 4096 bytes)
NET: Registered protocol family 1
cpu lock_reg:
active=d4822894
free =d4822898
gipc-protocol(d4822800): va=d4822800, pa=d4822800 ver=0104
ipc cacheable
ipc init ch=0
ipc ch[0]:CTRL, irb: va=d4823000-d4823640 pa=d4823000-d4823640
ipc ch[0]:CTRL, irb_work: va=d4873c00-d4873ea0 pa=d4873c00-d4873ea0
irb nr: tx=16(2080bytes) rx=64(2080bytes)
irb tx: va=d4823000-d4823140 pa=d4823000-d4823140
irb rx: va=d4823148-d4823648 pa=d4823148-d4823648
m-ch_enabled=0x1
ipc init ch=28
ipc ch[28]:DBG, irb: va=d480b000-d480ba28 pa=d480b000-d480ba28
ipc ch[28]:DBG, irb_work: va=d4823800-d4823c30 pa=d4823800-d4823c30
irb nr: tx=2(2080bytes) rx=128(2080bytes)
irb tx: va=d480b000-d480b028 pa=d480b000-d480b028
irb rx: va=d480b030-d480ba30 pa=d480b030-d480ba30
m-ch_enabled=0x10000001
IPCIF(v0.2) initialized
IPC Ver: 0.4
IPC_IF_RX_LIMIT=100
exFAT: Version 1.2.9
jffs2: version 2.2. (NAND) © 2001-2006 Red Hat, Inc.
msgmni has been set to 147
io scheduler noop registered
io scheduler deadline registered
io scheduler cfq registered (default)
i2c /dev entries driver
Initialize gdm-i2c
Probe gdm-i2c
i2c bus frequency set to 400 KHz
i2c-0: GDM I2C adapter
PMIC SWREGADJ1=0xb
ECOSWREG: 1f
PMIC GMT-G5851(id:12) probed!
gdm-uart.0: ttyS0 at I/O 0xfc007500 (irq = 2) is a gdm-uart
gdm-uart.1: ttyS1 at I/O 0xfc007540 (irq = 21) is a gdm-uart
gdm-uart.2: ttyS2 at I/O 0xfc007580 (irq = 33) is a gdm-uart
gdm-uart.3: ttyS3 at I/O 0xfc007600 (irq = 12) is a gdm-uart
[USIM] : GDM USIM device driver (1.1.7)
Serial flash ID[00000000]
Serial flash driver MAJOR[140]
start : c4000000, regs : d6000000, area : d4a84240, size : 16777216
brd: module loaded
GDM7243 NAND Driver (1.22), GCT Semiconductor, Ltd.
Ecc : 4bit
fault_ecc_nr=1
ecc_chk_loop_nr=2
chk_correctable_ecc=1
specific oobsize: 128Bytes
NAND: pagesize : 2K
NAND device: Manufacturer ID: 0xad, Chip ID: 0xaa (Hynix NAND 256MiB 1,8V 8-bit), 256MiB, page size: 2048, OOB size: 128
Bad block table found at page 131008, version 0x01
Bad block table found at page 130944, version 0x01
19 cmdlinepart partitions found on MTD device gdm7243
19 cmdlinepart partitions found on MTD device gdm7243
Creating 19 MTD partitions on "gdm7243":
0x000000000000-0x000000080000 : "u-boot"
0x000000080000-0x000000100000 : "env"
0x000000100000-0x000000200000 : "lte1nv"
0x000000200000-0x000000300000 : "lte2nv"
0x000000300000-0x000000400000 : "wmnv"
0x000000400000-0x000000500000 : "cmnnv"
0x000000500000-0x000000600000 : "cmnnv2"
0x000000600000-0x000000a00000 : "rev1"
0x000000a00000-0x000000e00000 : "linux"
0x000000e00000-0x000001200000 : "linux2"
0x000001200000-0x000003000000 : "rootfs"
0x000003000000-0x000004e00000 : "rootfs2"
0x000004e00000-0x000005300000 : "tk"
0x000005300000-0x000005800000 : "tk2"
0x000005800000-0x000007b00000 : "update"
0x000007b00000-0x000007f00000 : "cfg"
0x000007f00000-0x000008000000 : "factory"
0x000008000000-0x00000a000000 : "syslog"
0x00000a000000-0x00000a100000 : "zone"
---------------------
hdr chksum : 0xa7140766
magic : 0xcafebabe
timstamp : 0x00000041
data chksum : 0x7e23e583
data size : 0x0001ffdc
---------------------
---------------------
hdr chksum : 0xae9107cc
magic : 0xcafebabe
timstamp : 0x0000003e
data chksum : 0x8d73db97
data size : 0x0001ffdc
---------------------
PHYCR1: 0x211c
MII_LCR: 00006251->00006e51
PHYCR2: 0x842
gdm-rgmii at 0xec0c0000 irq=15 (00:0a:3b:f0:01:30) with Realtek RTL8211 PHY(at 00)
gdm-ether ver 1.4
dwc3_probe entered
unable to find transceiver of type USB2 PHY
unable to find transceiver of type USB3 PHY
dwc3 dwc3: no usb2 phy configured
platform dwc3: Driver dwc3 requests probe deferral
unable to find transceiver of type USB2 PHY
dwc2 dwc2: no platform data or transceiver defined
platform dwc2: Driver dwc2 requests probe deferral
gdm_phy3_probe
gdm_phy2_probe
mousedev: PS/2 mouse device common for all mice
mmc0: sdh base clock=200MHz
mmc: [MAIN CLOCK]: gdm-sdhost - 200Mhz
mmc0: SDH Clock freq = 200MHz, Timeout Clock freq = 1KHz
mmc0: host caps([0]=67e8c881 [1]=01000003) caps=4007800f
mmc0: clk=0 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: SDH voltage switch to 3.3V
mmc0: clk=400000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: at ec0b0000 irq 16 SDMA
mmc: ucfg_multi_sdhost=-1
sdhost1=0
mmc: sdhci_init ret=0
natq ver: 0.5.7 qnr=4096
Netfilter messages via NETLINK v0.30.
ipip: IPv4 over IPv4 tunneling driver
TCP: cubic registered
Initializing XFRM netlink socket
NET: Registered protocol family 10
sit: IPv6 over IPv4 tunneling driver
NET: Registered protocol family 17
NET: Registered protocol family 15
Bridge firewalling registered
Ebtables v2.0 registered
VFP support v0.3: implementor 41 architecture 2 part 30 variant 7 rev 4
GDM PM enabled(SYS_GLB_CTRL:00000000)
wfds_ms=25
aom memcpy(f4000000, d04e3000, 6912): d=38402de9 s=d3010ef1
aom memcpy done
GDM PM Inited: SYS_GLB_CTRL=0333c244(wfds=24993us)
RF SPI:
02=002da492
2e=01ffefff
ee=005b6410
fd=00040148
MTD Crash partition /dev/mtd7
ipc mux irb nr(0->128) bsize(0->4128)
ipc init ch=16
ipc ch[16]:MUX, irb: va=d480e000-d480ea28 pa=d480e000-d480ea28
ipc ch[16]:MUX, irb_work: va=d4b43000-d4b43430 pa=d4b43000-d4b43430
irb nr: tx=2(4128bytes) rx=128(4128bytes)
irb tx: va=d480e000-d480e028 pa=d480e000-d480e028
irb rx: va=d480e030-d480ea30 pa=d480e030-d480ea30
m-ch_enabled=0x10010001
cfg:Load cfg new driver...
dwc3_probe entered
dwc3 mode=0
dwc init suspendable:
GUSB2PHYCFG: 40002408->40002448
GUSB3PIPECTL: 010c0002->010e0002
udc: connect PHY_STATUS=00063000
dwc3 usb probed!
dwc2 dwc2: failed to enable otg clk
dwc2: probe of dwc2 failed with error -22
UBI: attaching mtd10 to ubi0
UBI: scanning is finished
UBI warning: print_rsvd_warning: cannot reserve enough PEBs for bad PEB handling, reserved 37, need 40
UBI: attached mtd10 (name "rootfs", size 30 MiB) to ubi0
UBI: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
UBI: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
UBI: VID header offset: 2048 (aligned 2048), data offset: 4096
UBI: good PEBs: 240, bad PEBs: 0, corrupted PEBs: 0
UBI: user volume: 1, internal volumes: 1, max. volumes count: 128
UBI: max/mean erase counter: 1/0, WL threshold: 4096, image sequence number: 2057389561
UBI: available PEBs: 0, total reserved PEBs: 240, PEBs reserved for bad PEB handling: 37
UBI: background thread "ubi_bgt0d" started, PID 887
em_mode=0x00000800:
b[0]=REBOOT_ON_LINUX_CRASH(off)
b[1]=REBOOT_ON_APP_CRASH(off)
b[8]=REBOOT_ON_MODEM_CRASH(off)
b[9]=REBOOT_ON_MODEM_WDT(off)
b[10]=RELOAD_ON_MODEM_CRASH(off)
b[11]=RELOAD_ON_MODEM_WDT(ON)
uart port[0] fc=0 cr=0000002b
UBIFS: mounted UBI device 0, volume 0, name "rootfs", R/O mode
UBIFS: LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
UBIFS: FS size: 23998464 bytes (22 MiB, 189 LEBs), journal size 6729728 bytes (6 MiB, 53 LEBs)
UBIFS: reserved for root: 0 bytes (0 KiB)
UBIFS: media format: w4/r0 (latest is w4/r0), UUID AD21B729-3E66-4356-9B34-C9ECBC1EC63B, small LPT model
VFS: Mounted root (ubifs filesystem) readonly on device 0:10.
Freeing unused kernel memory: 120K (d0422000 - d0440000)
mmc0: clk=400000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=400000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=400000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=0 vdd=0(Off) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=0 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: SDH voltage switch to 3.3V
starting pid 891, tty '': '/etc/init.d/rcS'
mmc0: clk=300000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=300000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=300000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=300000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=0 vdd=0(Off) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=0 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: SDH voltage switch to 3.3V
mmc0: clk=200000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=200000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=200000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=200000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=0 vdd=0(Off) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=0 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: SDH voltage switch to 3.3V
mmc0: clk=100000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=100000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=100000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=100000 vdd=21(3.3V) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
mmc0: clk=0 vdd=0(Off) dtype=0 ctrl=0 speed=FS xbit ctrl2=0
devpts: called with bogus options
Welcome to
G C T L T E M O D E M
[NV] : GDM NVM library (2.2)
[NV] NV_MAP : NV_LTE_7243QT
[NV] LTE1 NV Init active block (NV 1 : 0x40000)
[NV] LTE2 NV Init active block (NV 0 : 0x20000)
Jan 1 00:00:01 ucfgd: select_header(599) CMNNV2(3) : Block is corrupted.
Use normal log configuration
+modprobe modem modem_bootp="product_id=0x0000, operator_id=0x0000"
boot param: product_id=0x0000, operator_id=0x0000, boot_mode=0, gipc_phy_base=0xd4822800, mem_base=0xd0000000, mem_size=0x5000000, compat=0x1
---------------------
hdr chksum : 0xa7140766
magic : 0xcafebabe
timstamp : 0x00000041
data chksum : 0x7e23e583
data size : 0x0001ffdc
---------------------
---------------------
hdr chksum : 0xae9107cc
magic : 0xcafebabe
timstamp : 0x0000003e
data chksum : 0x8d73db97
data size : 0x0001ffdc
---------------------
read from nand mtd=tk
modem map info:
[0] pa(d5100000)->va(d8000000)
decompress gz(1f 8b) at 0xd5100000... (3456544bytes)
decompress done(6645968bytes)
-modprobe modem
Thu Jun 20 14:00:00 UTC 2013
TK: gipc-protocol addr(v2)=d4822800 magic=4054 ver=0104(0105)
TK: cpu lock_reg:
TK: active=d4822894
TK: free =d4822898
TK: ipc config=00000014
TK: router-device
TK: ipc init ch=0
TK: peer-genirq=fc002c28(1)
TK: s-ch_enabled=0x10010001
TK: ipc init ch=16
TK: peer-genirq=fc002c28(1)
TK: s-ch_enabled=0x10010001
TK: ipc init ch=28
TK: peer-genirq=fc002c28(1)
TK: s-ch_enabled=0x10010001
============================================================================
uT-Kernel R-20093 (branches / rev17602-20170801 : GDM7243QT_48MB_WIMAX : 48MB)
----------------------------------------------------------------------------
- gregkim@cae2
- gcc version 4.7.3 (Buildroot 2013.08.1)
- #0 Mon Dec 18 18:20:14 KST 2017
============================================================================
[MMU] VA:D0000000 PA:D0000000 SZ:80MB ATTR:0001140E
[MMU] D4FFFFFF PA:D4FFFFFF
[MMU] VA:FFF00000 PA:D5000000 SZ: 1MB ATTR:0000140E
[MMU] FFFFFFFF PA:D50FFFFF
[MMU] VA:FC000000 PA:FC000000 SZ:63MB ATTR:00000412
[MMU] FFEFFFFF PA:FFEFFFFF
[MMU] VA:F4000000 PA:F4000000 SZ: 1MB ATTR:00001412
[MMU] F40FFFFF PA:F40FFFFF
[MMU] VA:D6700000 PA:D6700000 SZ:24MB ATTR:0000040A
[MMU] D7EFFFFF PA:D7EFFFFF
[MMU] VA:D7F00000 PA:D7F00000 SZ: 1MB ATTR:00001412
[MMU] D7FFFFFF PA:D7FFFFFF
[CPU] ARMv7 Processor [410fc074] revision 4 (ARMv7) cr=12c5387d
[CACHE] cache: 512 bytes 1-way 64 byte lines 8 sets
[CACHE] D cache: write-back cache
[VFP] implementor 41 arch 2 part 30 variant 7 rev 4
[MEM] WT DRAM zero initialized 25165008(24575KB)bytes from d6700000 to d7effcd0
[MEM] NCH DRAM zero initialized 0(0KB)bytes from d7f8a348 to d7f8a348
[CHIP] GDM7243QT(Rev.0B)
[CLOCK] arm(833.280MHz) 1x(104.160MHz)
[PM] GDM Power Management
[MEM] total : 0xd5000000 - 0xd8000000 ( 48 MB)
[MEM] .init : 0xd5100000 - 0xd51063a4 ( 25 kB)
[MEM] .text : 0xd5100000 - 0xd570cd74 ( 6196 kB)
[MEM] .data : 0xd570d000 - 0xd57568d0 ( 295 kB)
[MEM] .bss : 0xd57568d0 - 0xd5ca3284 ( 5427 kB)
[MEM] .heap : 0xd5ca3400 - 0xd6700000 (10611 kB)
########################################
#### 7243 Board Configuration ####
########################################
Operator: [0x0000]
Product : [0x0000]
## LTE CONFIG
- Combined attach : [0]
- UE CAPABILITY
> UE Category : [0 (0/0)]
> AS Rel Num : [0]
> Multi-Band : [1]
> FGI : FDD [00000000 00000000 00000000]
> : TDD [00000000 00000000 00000000]
> ROHC : [1]
> eMBMS : [0]
> TM : [00/00/00]
[console] crash enabled
[console] gdm_ipc enabled
[console] gdm_uart0 enabled
----------------------------------------------------------------------------
LTE - FW ver: 0.3.2.9
----------------------------------------------------------------------------
----------------------------------------------------------------------------
WiMAX - Build data: 2017/12/18 18:20:15
----------------------------------------------------------------------------
nv_checksum_info: 0
DM> lte driver ver 1.0.2
VLANQ register lte0pdn0 tag=100 en=0
VLANQ register lte0pdn1 tag=101 en=0
VLANQ register lte0pdn2 tag=102 en=0
VLANQ register lte0pdn3 tag=103 en=0
VLANQ register lte0pdn4 tag=104 en=0
VLANQ register lte0pdn5 tag=105 en=0
VLANQ register lte0pdn6 tag=106 en=0
VLANQ register lte0pdn7 tag=107 en=0
ipc init ch=1
ipc ch[1]:LTE-SDU, irb: va=d4260000-d426f000 pa=d4260000-d426f000
ipc ch[1]:LTE-SDU, irb_work: va=d4258000-d425e020 pa=d4258000-d425e020
irb nr: tx=1024(1568bytes) rx=2048(1568bytes)
irb tx: va=d4260000-d4265000 pa=d4260000-d4265000
irb rx: va=d4265008-d426f008 pa=d4265008-d426f008
cK: ipc init c h =m1-
eh_enabled=0x1T0K0:1 0 0 0p3e
r-genirq=fc002c28(1)
TK: s-ch_enabled=0x10010003
netif set local ip: 169.254.0.1
netif set local ip: 0.0.0.0
netif set local ip: 169.254.0.1
device eth0 entered promiscuous mode
tc->desc=d58ac000 desc_phys=d3f78000
IPv6: ADDRCONF(NETDEV_UP): eth0: link is not ready
brctl: iface usb0: No such device
ifconfig: SIOCSIFADDR: No such device
/etc/sysconfig/script/start_wlan.sh: line 13: /usr/wifi/mrvl/start_gct.sh: No such file or directory

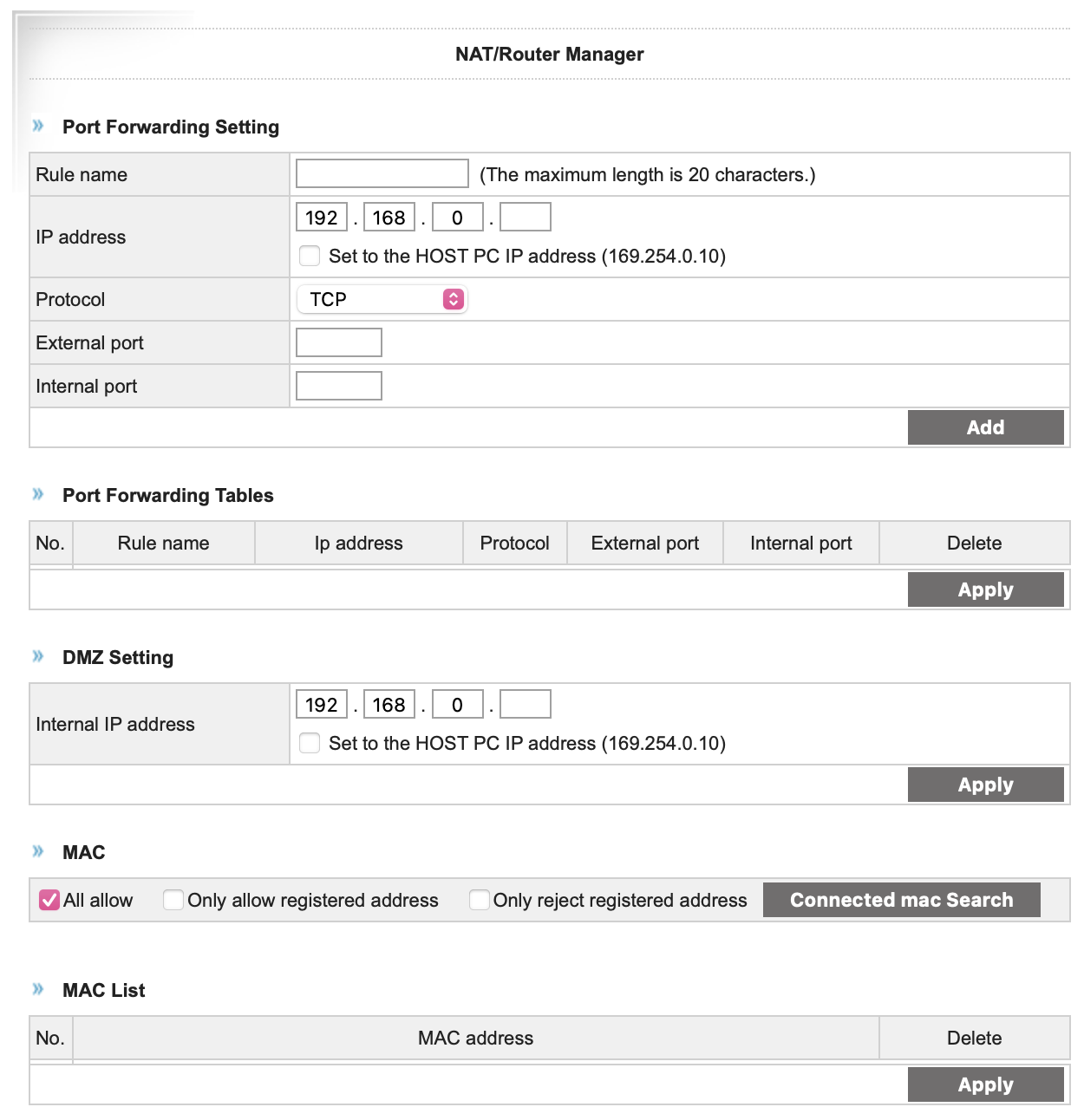

Loading simple NAT configuration..
INTF=br0, WANINTF=lte0pdn0
ip_tables: (C) 2000-2006 Netfilter Core Team
nf_conntrack version 0.5.0 (1184 buckets, 4736 max)
register ip_conntrack_cb
<message>[NV] CMN2 NV Write Skip (3:NVIM_I_CMN2_PORT, 0x0, 2569)
Fail to Check DMZ Setting. Please, restart Command</message>
<message>[NV] CMN2 NV Write Skip (4:NVIM_I_CMN2_MAC, 0x0, 1549)
Fail to get MAC filter list</message>
<status>All allow</status>
<allow_mac_list_num>0</allow_mac_list_num>
<reject_mac_list_num>0</reject_mac_list_num>
Setting dhcp configuration..
Internet Systems Consortium DHCP Server 4.1-ESV-R9
Copyright 2004-2014 Internet Systems Consortium.
All rights reserved.
For info, please visit https://www.isc.org/software/dhcp/
Wrote 0 leases to leases file.
Listening on LPF/br0/60:14:66:63:c5:b9/169.254.0.0/24
Sending on LPF/br0/60:14:66:63:c5:b9/169.254.0.0/24
Sending on Socket/fallback/fallback-net
Set GPD8 1
Set GPD9 1
2013-06-20 14:00:01: (log.c.166) server started
[bmon] Wait hibernation
#### VLAN ENABLE
ENABLE lte0pdn0 VLAN!!!
VLAN LOG(00000004):
vlan devices:
lte0pdn0: enable=1 tag=100
lte0pdn1: enable=0 tag=101
lte0pdn2: enable=0 tag=102
lte0pdn3: enable=0 tag=103
lte0pdn4: enable=0 tag=104
lte0pdn5: enable=0 tag=105
lte0pdn6: enable=0 tag=106
lte0pdn7: enable=0 tag=107
lte0pdn8: enable=0 tag=108
lte0pdn9: enable=0 tag=109
lte0pdn10: enable=0 tag=110
lte0pdn11: enable=0 tag=111
lte0pdn12: enable=0 tag=112
lte0pdn13: enable=0 tag=113
lte0pdn14: enable=0 tag=114
lte0pdn15: enable=0 tag=115
wimax: enable=0 tag=200
running netif_q_thread!
[wimax] bentry delayed copy: b336(4)
ENABLE lte0pdn1 VLAN!!!
VLAN LOG(00000004):
vlan devices:
lte0pdn0: enable=1 tag=100
lte0pdn1: enable=1 tag=101
lte0pdn2: enable=0 tag=102
lte0pdn3: enable=0 tag=103
lte0pdn4: enable=0 tag=104
lte0pdn5: enable=0 tag=105
lte0pdn6: enable=0 tag=106
lte0pdn7: enable=0 tag=107
lte0pdn8: enable=0 tag=108
lte0pdn9: enable=0 tag=109
lte0pdn10: enable=0 tag=110
lte0pdn11: enable=0 tag=111
lte0pdn12: enable=0 tag=112
lte0pdn13: enable=0 tag=113
lte0pdn14: enable=0 tag=114
lte0pdn15: enable=0 tag=115
wimax: enable=0 tag=200
GCT mobile WiMax driver version 0.5
VLANQ register wimax tag=200 en=0
ipc init ch=12
ipc ch[12]:WM-SDU, irb: va=d391c000-d391c780 pa=d391c000-d391c780
ipc ch[12]:WM-SDU, irb_work: va=d392a800-d392ab20 pa=d392a800-d392ab20
irb nr: tx=32(1568bytes) rx=64(1568bytes)
irb tx: va=d391c000-d391c280 pa=d391c000-d391c280
irb rx: va=d391c288-d391c788 pa=d391c288-d391c788
er-genirq=fc002c28(1)10K:1 3
TK: s-ch_enabled=0x10011003
Loading kernel module for a network device with CAP_SYS_MODULE (deprecated). Use CAP_NET_ADMIN and alias netdev-wimax instead.
ENABLE lte0pdn2 VLAN!!!
VLAN LOG(00000004):
vlan devices:
lte0pdn0: enable=1 tag=100
lte0pdn1: enable=1 tag=101
lte0pdn2: enable=1 tag=102
lte0pdn3: enable=0 tag=103
lte0pdn4: enable=0 tag=104
lte0pdn5: enable=0 tag=105
lte0pdn6: enable=0 tag=106
lte0pdn7: enable=0 tag=107
lte0pdn8: enable=0 tag=108
lte0pdn9: enable=0 tag=109
lte0pdn10: enable=0 tag=110
lte0pdn11: enable=0 tag=111
lte0pdn12: enable=0 tag=112
lte0pdn13: enable=0 tag=113
lte0pdn14: enable=0 tag=114
lte0pdn15: enable=0 tag=115
wimax: enable=0 tag=200
ENABLE lte0pdn3 VLAN!!!
VLAN LOG(00000004):
vlan devices:
lte0pdn0: enable=1 tag=100
lte0pdn1: enable=1 tag=101
lte0pdn2: enable=1 tag=102
lte0pdn3: enable=1 tag=103
lte0pdn4: enable=0 tag=104
lte0pdn5: enable=0 tag=105
lte0pdn6: enable=0 tag=106
lte0pdn7: enable=0 tag=107
lte0pdn8: enable=0 tag=108
lte0pdn9: enable=0 tag=109
lte0pdn10: enable=0 tag=110
lte0pdn11: enable=0 tag=111
lte0pdn12: enable=0 tag=112
lte0pdn13: enable=0 tag=113
lte0pdn14: enable=0 tag=114
lte0pdn15: enable=0 tag=115
wimax: enable=0 tag=200
act=1
lted: lted started
[lted] bentry delayed copy: b336(4)
[NV] NV_MAP : GDM7243QT
[NV_HCI] nv checksum is valid(0xa61242c4/0xa61242c4)
[NVM] READ Head N_INFO (7243,10,8c) - Status(0)
[NVM] READ Head N_BCFG (7243,10,80) - Status(0)
[NVM] READ Head N_RFCAL (7243,11,bd) - Status(0)
[NVM] READ Head N_TCCAL (7243,10,61) - Status(0)
[NVM] READ Head N_NETWORK (7243,10,e0) - Status(0)
[NVM] READ Head N_SAFE (0000,00,00) - Status(0)
[NVM] Default NV Memory Write(5)
[NVM] NV SAFE DUMP
[NVM] READ Head N_ETCAL (7243,10,00) - Status(0)
[V_SIM]ProcNvBcfgData/gstVsimEnData:0
default tdm log level=0 (NV:0)
| net: clearing start - eps_id = 0xffef
| net: clearing done
DM> DM> L1_BandInformation:success(42)
L1_BandInformation:success(43)
L1_BandInformation:success(48)
ps_sys_init / UMM_Create
[UMM_ERR] [V_SIM]eVSIM_Enabled:%d , 0
[NAS_EMMCache] set IMEI to default value. current:[0x 08 8A 26...]
USIM driver open
set pm delay=7000ms
lted: [SERVER] new connection request
lted: [SERVER] assigns client index 0
| net: clearing start - eps_id = 0xfeff
| net: clearing done
gdm_mux_init
lted: [SERVER] new connection request
lted: [SERVER] assigns client index 1
lted_client_init_ex success[SMS]Wait LTE PS INIT..
Disable GPS Module ...
g_ether gadget: using random self ethernet address
usb0: MAC ce:17:18:9e:89:81
usb0: HOST MAC 00:0a:3b:ff:ff:01
EOU_RTC_TIMER enabled!
g_ether gadget: mode - rndis
g_ether gadget: Multifunction Composite Gadget, version: Memorial Day 2008
g_ether gadget: g_ether ready
eth_open
IPv6: ADDRCONF(NETDEV_UP): usb0: link is not ready
Not Used
IPV6Q LOG(00000004):
ipv6q_enabled=0
NET EMUL LOG(00000000): NULL
net_emul_mask=00000000
ugserver: [main 1024]Start UGServer.
ENABLE ipatc, port number 7788
modify zm zone info ---> running
lted: pm_no_sleepable=1
[LTE_NV] LTE NV Write Skip (4:LTE_NETWORK, 0x2c, 54)
------------------------------------------------------------------------
| pdn_manager_event_notify() - PDN Event:0x0020
| PDN_EVENT_DETACH
zone @off(0x00000000)
lted: pm_no_sleepable=0
**********************************************
* Starting ipatc *
**********************************************
lted: [SERVER] new connection request
lted: [SERVER] assigns client index 2
[HCI] bSupportEARFCN_EXT:1
lted: [SERVER] new connection request
lted: [SERVER] assigns client index 3
lted: [SERVER] new connection request
lted_client_init_ex successlted: [SERVER] assigns client index 4
set TR1M Timer value is 35
NV Read center_address
[HCI] bUICCNormalFID_HCI:1
[LTE_NV] LTE NV Write Skip (0:LTE_INFO, 0x8d, 4)
OPERATIONAL MODE(DEV_IDX(1))
SELF CELL SEARCH : DISALBE
SELF ATTACH : DISALBE
OFFLINE INCLUDE DEATCH : DISALBE
IMS AND SMS INFO(DEV_IDX(1))
SMS FORMAT : 3GPP
SMS WRITE : NV
IMS TEST MODE : OFF
SMS OVER IP NET : OFF
GET_SMS_AND_IMS ==========================================>
> SMS_MO_FORMAT(1) SMS_STORAGE(0) IMS_TEST_MODE(0) SMS_OVER_IP(0)
APN TABLE INFO(DEV_IDX(1))
--------------------------------------
APN INDEX : 0
ENABLED : 0
CL : 0
PDN LABEL LEN : 0
NI LEN: 0
PDN TYPE : 0
IP ALLOC TYPE : 0
RAT TYPE : 0
AUTHENTICATION TYPE : 0
INCAT TIMER : 0
USER NAME LEN : 0
PASSWORD LEN : 0
--------------------------------------
APN INDEX : 1
ENABLED : 0
CL : 0
PDN LABEL LEN : 0
NI LEN: 0
PDN TYPE : 0
IP ALLOC TYPE : 0
RAT TYPE : 0
AUTHENTICATION TYPE : 0
INCAT TIMER : 0
USER NAME LEN : 0
PASSWORD LEN : 0
--------------------------------------
APN INDEX : 2
ENABLED : 0
CL : 0
PDN LABEL LEN : 0
NI LEN: 0
PDN TYPE : 0
IP ALLOC TYPE : 0
RAT TYPE : 0
AUTHENTICATION TYPE : 0
INCAT TIMER : 0
USER NAME LEN : 0
PASSWORD LEN : 0
--------------------------------------
APN INDEX : 3
ENABLED : 0
CL : 0
PDN LABEL LEN : 0
NI LEN: 0
PDN TYPE : 0
IP ALLOC TYPE : 0
RAT TYPE : 0
AUTHENTICATION TYPE : 0
INCAT TIMER : 0
USER NAME LEN : 0
PASSWORD LEN : 0
--------------------------------------
APN INDEX : 4
ENABLED : 0
CL : 0
PDN LABEL LEN : 0
NI LEN: 0
PDN TYPE : 0
IP ALLOC TYPE : 0
RAT TYPE : 0
AUTHENTICATION TYPE : 0
INCAT TIMER : 0
USER NAME LEN : 0
PASSWORD LEN : 0
--------------------------------------
APN INDEX : 5
ENABLED : 0
CL : 0
PDN LABEL LEN : 0
NI LEN: 0
PDN TYPE : 0
IP ALLOC TYPE : 0
RAT TYPE : 0
AUTHENTICATION TYPE : 0
INCAT TIMER : 0
USER NAME LEN : 0
PASSWORD LEN : 0
---------------------SMSMGR : bSmsFormat(3GPP)
-----------------
APN INDEX : 6
ENABLED : 0
CL : 0
PDN LABEL LEN : 0
NI LEN: 0
PDN TYPE : 0
IP ALLOC TYPE : 0
RAT TYPE : 0
AUTHENTICATION TYPE : 0
INCAT TIMER : 0
USER NAME LEN : 0
PASSWORD LEN : 0
--------------------------------------
APN INDEX : 7
ENABLED : 0
CL : 0
PDN LABEL LEN : 0
NI LEN: 0
PDN TYPE : 0
IP ALLOC TYPE : 0
RAT TYPE : 0
AUTHENTICATION TYPE : 0
INCAT TIMER : 0
USER NAME LEN : 0
PASSWORD LEN : 0
pwrscn parameters:
en = 2
th = -256.0
bw = 0
cal = 13.0
win = 9600
PLMN SEARCH INTERVAL(DEV_IDX(1))
INTERVAL : 0, COUNT : 0
INTERVAL : 0, COUNT : 0
INTERVAL : 0, COUNT : 0
INTERVAL : 0, COUNT : 0
INTERVAL : 0, COUNT : 0
INTERVAL : 0, COUNT : 0
INTERVAL : 0, COUNT : 0
INTERVAL : 0, COUNT : 0
INTERVAL : 0, COUNT : 0
INTERVAL : 0, COUNT : 0
CURRENT OPERATOR(DEV_IDX(1)) : None (Default)
setUcfgExtendEarfcnType() result is 1
set Earfcn type is 4 Bytes
SMS SUBMIT RESPONSE(DEV_IDX(1))
[START] SMS SUBMIT RSP : sms_submit_rsp
sms_submit_rsp_info->result : 0
sms_submit_rsp_info->type : 0x7
sms_submit_rsp_info->len : 2
CFG_WRITE_CNF : result(0) | item(3)
[END] SMS SUBMIT RSP
setUiccNormalFidType() result is 1
UICC Normal Fid Type is Normal UICC Fid
ONLINE RESPONSE(DEV_IDX(1))
Result : 0
lted: lte_watchdog_is_enable [0]
GET PROTOCOL INFO ERROR RESULT : 1 (TYPE 6/DEV1)
[Error] GET PROTOCOL INFO ERROR RESULT : 1 (TYPE 6/
Parameters:
sync-time-ofs = 0
rxtimer_wait = 0
dbg = 0x7
option = 0xeb8001
adc_sample_freq = 1 0 0 0
agc_log = 0
afc_log = 0
sync-pss-iter = 2
pss parameters:
th1 = 0.039
th2DEV1)
[online_request]Watchdog First start
= 0.029
th3 = 0.301
acc = 2
gain = 72 142
gain_th = 0
gain_step = 0
acx = 1 10
foe-skip = 0
foe-acc = 2
foe-mode = 0
cinr-th = -10.0
time_ofs = -1
inter_mgn = 20.0
ant_sel = 0
nll = 5
DM> atcm: read_ucfg : /wan/lte/apntable/apn1/ENABLE 0 1
atcm: read_ucfg : /wan/lte/apntable/apn2/ENABLE 0 1
atcm: read_ucfg : /wan/lte/apntable/apn3/ENABLE 1 1
atcm: read_ucfg : /wan/lte/apntable/apn4/ENABLE 0 1
atcm: read_ucfg : /wan/lte/apntable/apn5/ENABLE 0 1
atcm: read_ucfg : /wan/lte/apntable/apn6/ENABLE 0 1
atcm: read_ucfg : /wan/lte/apntable/apn7/ENABLE 0 1
atcm: read_ucfg : /wan/lte/apntable/apn8/ENABLE 0 1
lted: [SERVER] new connection request
lted: [SERVER] assigns client index 5
uart port[1] fc=0 cr=0000002b
[SMS]LTE PS INIT Completed
[SMS]Start
UICC MSG FROM DEVICE(DEV_IDX(1))
UICC Status : 0
UICC App Type : 1
lteautocm: [BAND] CMD(wan/lte/band/full) VALUE(NULL) ARE WRONG
lteautocm: [BAND] FULL BAND COLLECTION ERROR
lteautocm: It does not support that send supported band to Arm1.
lteautocm: Please check wan/lte/band/full.
lteautocm: NAS Signaling Priority : Not Ready !!
lteautocm: NMO I Behavior : Not Ready !!
lteautocm: Attach With IMSI : Not Ready !!
lteautocm: Minimum Periodic Search Timer(enable) : Not Ready !!
lteautocm: Timer T3245 Behavior : Not Ready !!
lteautocm: Override NAS Signaling Low Priority : Not Ready !!
lteautocm: Extended Access Barring : Not Ready !!
lteautocm: Override Extended Access Barring : Not Ready !!
lteautocm: Fast First Higher Priority PLMN Search : Not Ready !!
lteautocm: EUTRA Disabling Allowed For EMM Cause 15 : Not Ready !!
lteautocm: SM Retry Wait Time(enable) : Not Ready !!
lteautocm: get_nas_config_parameter_set(), num_of_list:0
lpa=c5e1 expansion=6f
expansion_nway(0, 0, 0)
advertise=1e1 common=1e1
eth0: link up, 100Mbps, full-duplex (3140, 79ad, c5e1)
VLAN: all hmac cleared
IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
br0: port 1(eth0) entered forwarding state
br0: port 1(eth0) entered forwarding state
U-Boot dodatočne
Code: Select all
Hit Ctrl+S key to stop autoboot: 0
Press 123 to Sure abort autoboot: ***
GDM7243> help
? - alias for 'help'
askenv - get environment variables from stdin
base - print or set address offset
bootm - boot application image from memory
bootp - boot image via network using BOOTP/TFTP protocol
chpart - change active partition
cmp - memory compare
cp - memory copy
crc32 - checksum calculation
ddri - Print DDR information
dramt - do DRAM Test
dramt2 - do DRAM Test2
fsinfo - print information about filesystems
fsload - load binary file from a filesystem image
go - start application at address 'addr'
grfi - Print GRF information
help - print command description/usage
image - GDM7243 image control (write, write_part, read, toggle, select)
loadb - load binary file over serial line (kermit mode)
loady - load binary file over serial line (ymodem mode)
loop - infinite loop on address range
ls - list files in a directory (default /)
md - memory display
mm - memory modify (auto-incrementing address)
mtdparts- define flash/nand partitions
mtdt - GDM Nand test command v2
mtest - simple RAM read/write test
mw - memory write (fill)
mwx - memory write (incremental fill)
nand - NAND sub-system
nandtest- GDM7243 nand test command
nboot - boot from NAND device
nm - memory modify (constant address)
ping - send ICMP ECHO_REQUEST to network host
printenv- print environment variables
rarpboot- boot image via network using RARP/TFTP protocol
reset - Perform RESET of the CPU
run - run commands in an environment variable
saveenv - save environment variables to persistent storage
setenv - set environment variables
sleep - delay execution for some time
suspend - CPU suspend
tftpboot- boot image via network using TFTP protocol
version - print monitor version
Code: Select all
GDM7243> printenv
bootdelay=1
baudrate=921600
op_bootargs=default
fs_permission=ro
mem=00M
nand0=gdm7243
kernel_exec_addr=0xd05fffc0
kernel_load_addr=0xd0600000
file_load_addr=0xd0008000
cleanenv=nand erase.part env
linuxdn=loady ${kernel_load_addr}
imagedn=loady ${file_load_addr}
linuxsave=image write ${kernel_load_addr} linux ${filesize}
linux0save=image write_part ${kernel_load_addr} linux ${filesize}
linux2save=image write_part ${kernel_load_addr} linux2 ${filesize}
rootfssave=image write ${file_load_addr} rootfs ${filesize}
rootfs0save=image write_part ${file_load_addr} rootfs ${filesize}
rootfs2save=image write_part ${file_load_addr} rootfs2 ${filesize}
tksave=image write ${file_load_addr} tk ${filesize}
tk0save=image write_part ${file_load_addr} tk ${filesize}
tk0save=image write_part ${file_load_addr} tk2 ${filesize}
linuxsave2=nand erase.part linux;nand write ${kernel_load_addr} linux ${filesize}
rootfssave2=nand erase.part rootfs;nand write.jffs2 ${file_load_addr} rootfs ${filesize}
paramsave=nand erase.part param;nand write ${file_load_addr} param ${filesize}
bootsave=nand erase.part u-boot;nand write ${file_load_addr} u-boot ${filesize}
bswoecc=nand erase.part u-boot;nand write.woecc ${file_load_addr} u-boot ${filesize}
setbootargs=set bootargs console=ttyS0,${baudrate} boot=nand mem=${mem} ubi.mtd=10,2048 root=ubi0:rootfs ${fs_permission} rootfstype=ubifs ${mtdparts}
bootcmd=image read ${kernel_exec_addr} linux;bootm ${kernel_exec_addr}
bootcmd2=run setbootargs;nand read ${kernel_exec_addr} linux;bootm ${kernel_exec_addr}
webupdatekernel=0
webupdaterootfs=0
setfactrst=0
webupdkernelcmd=nand erase.part linux;nand read ${kernel_load_addr} upuimg ${partsize};nand write ${kernel_load_addr} linux ${partsize}
webupdrootfscmd=nand erase.part rootfs;nand read ${file_load_addr} upram ${partsize};nand write ${file_load_addr} rootfs ${partsize}
webupdatecmd=run webupdkernelcmd;run webupdrootfscmd;run bootcmd
factrstcmd=nand erase.part linux;nand read ${kernel_load_addr} factrst0 ${partsize};nand write ${kernel_load_addr} linux ${partsize};nand erase.part rootfs;nand read ${file_load_addr} factrst1 ${partsize};nand write ${file_load_addr} rootfs ${partsize}
upuimgsave=nand erase.part upuimg;nand write ${kernel_load_addr} upuimg ${filesize}
upramsave=nand erase.part upram;nand write.jffs2 ${file_load_addr} upram ${filesize}
factrst0save=nand erase.part factrst0;nand write.jffs2 ${kernel_load_addr} factrst0 ${filesize}
factrst1save=nand erase.part factrst1;nand write.jffs2 ${file_load_addr} factrst1 ${filesize}
tftpuboot=tftp ${file_load_addr} u-boot.bin
tftplinux=tftp ${kernel_load_addr} uImage
tftpcramfs=tftp ${file_load_addr} ramdisk.cramfs
tftpjffs2=tftp ${file_load_addr} ramdisk.jffs2
tftpubifs=tftp ${file_load_addr} ramdisk.ubifs
tftptk=tftp ${file_load_addr} tk.gz
ethaddr=00:0a:3b:f0:01:30
gatewayip=192.168.0.1
netmask=255.255.255.0
ipaddr=192.168.0.1
serverip=192.168.0.10
package_update=0
fwdatachecksum=1
mtdids=nand0=gdm7243
mtdparts=mtdparts=gdm7243:512k(u-boot),512k(env),1m(lte1nv),1m(lte2nv),1m(wmnv),1m(cmnnv),1m(cmnnv2),4m(rev1),4m(linux),4m(linux2),30m(rootfs),30m(rootfs2),5m(tk),5m(tk2),35m(update),4m(cfg),1m(factory),32m(syslog),1m(zone)
stdin=serial
stdout=serial
stderr=serial
ethact=mii0
partition=nand0,0
mtddevnum=0
mtddevname=u-boot
Environment size: 3294/131068 bytes
Code: Select all
GDM7243> mtdparts
device nand0 <gdm7243>, # parts = 19
#: name size offset mask_flags
0: u-boot 0x00080000 0x00000000 0
1: env 0x00080000 0x00080000 0
2: lte1nv 0x00100000 0x00100000 0
3: lte2nv 0x00100000 0x00200000 0
4: wmnv 0x00100000 0x00300000 0
5: cmnnv 0x00100000 0x00400000 0
6: cmnnv2 0x00100000 0x00500000 0
7: rev1 0x00400000 0x00600000 0
8: linux 0x00400000 0x00a00000 0
9: linux2 0x00400000 0x00e00000 0
10: rootfs 0x01e00000 0x01200000 0
11: rootfs2 0x01e00000 0x03000000 0
12: tk 0x00500000 0x04e00000 0
13: tk2 0x00500000 0x05300000 0
14: update 0x02300000 0x05800000 0
15: cfg 0x00400000 0x07b00000 0
16: factory 0x00100000 0x07f00000 0
17: syslog 0x02000000 0x08000000 0
18: zone 0x00100000 0x0a000000 0
active partition: nand0,0 - (u-boot) 0x00080000 @ 0x00000000
defaults:
mtdids : nand0=gdm7243
mtdparts: mtdparts=gdm7243:512k(u-boot),512k(env),1m(rev0),1m(ltenv),1m(wmnv),1m(cmnnv),1m(cmnnv2),4m(rev1),4m(linux),4m(linux2),30m(rootfs),30m(rootfs2),5m(tk),5m(tk2),35m(update),4m(cfg),1m(factory),32m(syslog),1m(zone)
Linux dodatočne
Code: Select all
DM> help
Exit
exit
Launch shell
shell
Send command to IMS Client
imsc
Help about help?
help [<topic>]
***** PLMN SELECTION Command *****
pls PLMN Search
plse PLMN Search Extension
plss PLMN Search Stop
pll PLMN List Request
pllext PLMN List Ext Request
plla PLMN List Abort Request
qspl Query Selected Plmn
plsi PLMN Search Interval Index Read
plsic PLMN Ineterval Change Request
plsr PLMN Search Status Read
plsmr PLMN Search Mode Read
acs Automatic cell search start Request
oprtrcnt Set Attach & RRC retry count
***** EMM CONTROL Command *****
at Attach
atex Attach Extension
dt Detach
service Service request
***** ESM CONTROL Command *****
pc PDN Connectivity
pcex PDN Connectivity extension
pd PDN Diconnect
br Bearer Resource
***** UE CONTROL Command *****
sus Suspend Request
resume Resume Request
on Online Request
off Offline Request
offx Offline Request extension
***** DEVICE INFORMATION Command *****
hkadc HKADC Read
mid Mobile Identity Read
iccid ICCID Read
msisdn MSISDN Read
temperature Temperature Read
***** LTE PROTOCOL INFORAMTION Command *****
nid NID Read
tz TIMEZONE Read
indm Indication Mask Control Read
scf Serving Cell Frequency Read
sib SIB1 PMAX Read
emmi EMM Information Read
emms EMM State Read
tin TIN Read
***** UICC CONTROL Command *****
uicc UICC Control Request
bip BIP Control Request
***** DM LOG Command *****
dm Get DM Log
dmext Get DM Log Ext
***** NV Command *****
gpsinfo Get Protocol info
spsinfo Set Protocol info
nvup Upload NV data from device
nvdown Download NV data to device
***** PS CONTROL Command *****
indmc Indication Mask Control Request
rfsc RF Status Report Control Request
dbgc Debug Log Control Request
epsnsc Save EPSNSC NV Request
rfec RF Event Control Request
rfmr RF Measure Report Request
hic Host IP Connect Request
***** ETC Command *****
lb Loopback Start
gdi Get Device Information
gdl Get Device List
reset LTE Device Reset
pf LTE Device Power Off
gp Get GPIO data
sp Set Data to GPIO
gc Get Crash Log
ec Erase Crash Log
download Download Firmware
chmac Change Mac Address
chimei Change IMEI
slogconf Set Log Config(CM & SDK)
glogconf Get Log Config(CM & SDK)
cinfo Get Connection Information
nstats Get Network Statics
dm_en DM Mode Enable
dm_dis DM Mode Disable
kern Kernel Command
vs Vendor Specific Reauest
rrccapa RRC Capability Control Set Request
rrccapag RRC Capability Control Get Request
rrcfunc RRC Function Control Set Request
rrcfuncg RRC Function Control Get Request
phyta PHY TA Information

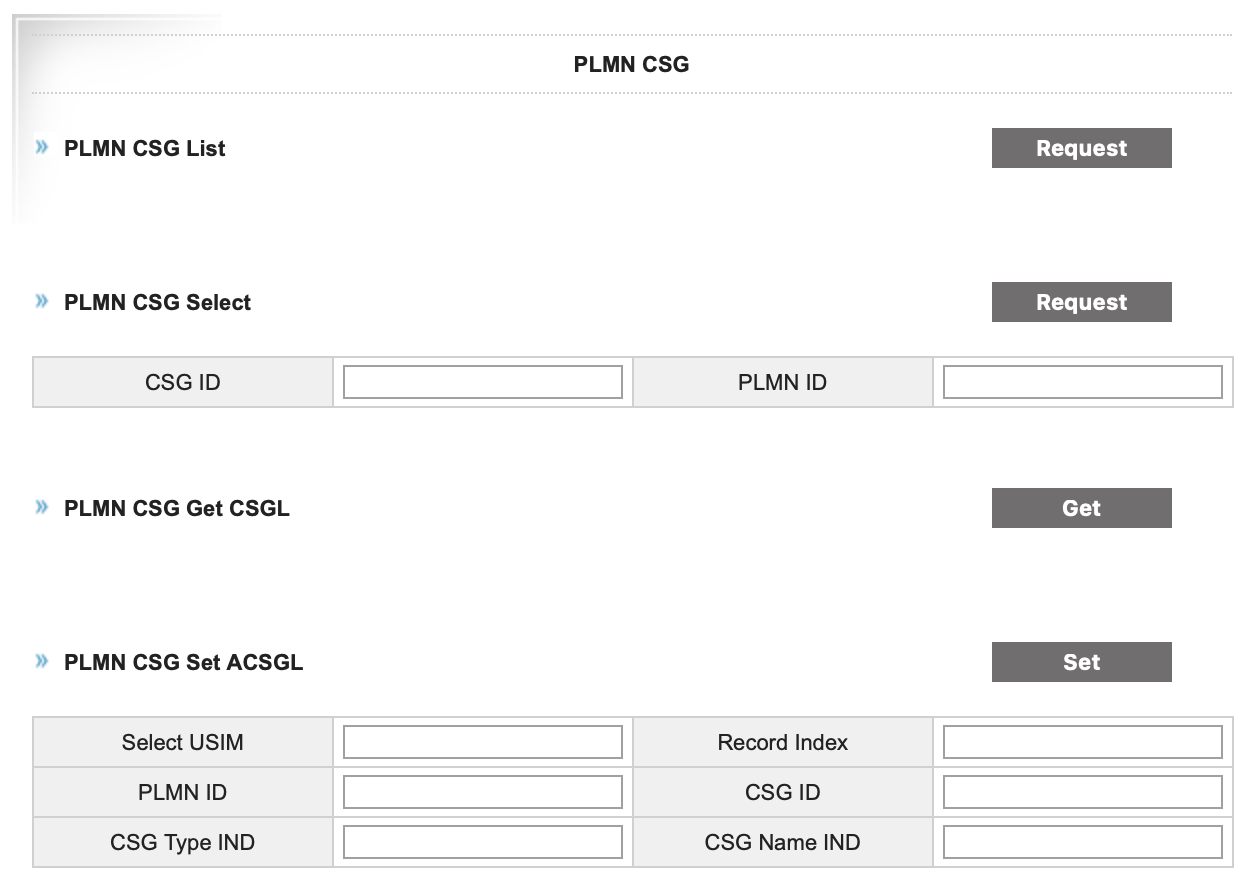

plmncsgl PLMN CSG List Request
plmncsga PLMN CSG List Abort Request
plmncsgs PLMN CSG Select Request
plmncsgqs PLMN CSG Query Selected Request
plmncsgsl PLMN CSG Set Access CSG List Request
plmncsggl PLMN CSG Get CSG List Request
roamallow SET ROAMING ALLOW
shell Using Shell Prompt
nasconf NAS Configuration
exit CM terminate
Usage: [trace|knl|ipc|sys|pm|quit|brd|nv|l2|msg|dp|pkmon|sts|mon|font|dbg|nvm|l1d|l1c|rfm|l1r|l1s|l1u|cip|rohc|le|ltelb]
Description:
l2 : Layer 2
dp : Data-Path
pkmon : pkmon command
sts : Accumulated Statistics
nvm : nvm
l1c : L1 common configuration
rfm : RFM test command
l1s : L1 searcher commands
rohc : ROHC commands
Code: Select all
DM> shell
# uname -a
Linux gdm7243 3.10.0-uc0 #1 Wed Jan 17 16:44:46 CST 2018 armv7b GNU/Linux
Display all 349 possibilities? (y or n)
! getopt pwd
./ getopts pwdx
: gpioctrl radvd
UDPserver gpioutil rdev
[ grep read
[[ groups readarray
]] gunzip readlink
acpid gzip readonly
alias halt realpath
alsactl hash reboot
alsaloop head reformime
alsaucm help renice
amixer hexdump reset
aplay history return
apm hostid rev
apmd hostname rm
arecord hotplug rmdir
arp id rmmod
awk if route
base64 ifcfg scriptreplay
basename ifconfig sdkd
bash ifdown sed
beep ifplugd select
bg ifup set
bind in setfont
blkid inetd setserial
blockdev init sh
bmon insmod sha256sum
bmon_cli io-relay sha3sum
bootchartd ionice sha512sum
brctl iostat shift
break ip shopt
builtin ipatc showkey
busybox iperf sleep
cal iptables smartfren
caller iptables-restore smemcap
case iptables-save sort
cat iwcontrol source
cd iwpriv speaker-test
chgrp jobs sprint_cm
chmod kern strace
chown kill stty
clear killall suspend
cmcc_cm klogd sync
cmp led_ctrl sysctl
command let syslogd
compgen libpng-config tail
complete libpng16-config tar
compopt lighttpd tc
conspy ln tcpdump
continue local tee
coproc logger telnetd
cotra login test
cp logout tftp
cpu lrz then
crond ls time
crontab lsmod timeout
curl lsof times
cut lspci top
date lsusb touch
dc lsz tr
dd lteatcm trap
declare lteautocm true
devmem ltebip tty
df lted tunctl
dhclient lted_cli type
dhclient-script ltesms typeset
dhcpcd ltewatch uartdm
dhcpd lzop ubiattach
dhcprelay lzopcat ubidetach
diff makemime ubiformat
dirname man ubimkvol
dirs mapfile ubirename
disown md5sum ubirmvol
dmesg mkdir ubirsvol
dnsdomainname mkdosfs ubiupdatevol
dnsmasq mke2fs ucfg
do mkfifo ucfgd
done mkfs.ext2 udhcpc
dos2unix mkfs.vfat udhcpd
du mknod ugmanager
dumpleases mode-change ugserver
echo modinfo ulimit
egrep modprobe umask
elif more umount
else mount unalias
embmsd mpstat uname
enable mv uniq
env nanddump unix2dos
esac nandwrite unlzop
ethtool nbd-client unset
eval netdump until
exec netnv unxz
exit netstat usb-device-ueventd
export npd6 usleep
expr nslookup vi
false ntpd volname
fbsplash nv-init wait
fc nvram_get watchdog
fg nvram_set wc
fgconsole nvutil wcm_cli
fgrep olte_diagnostics webs
fi olte_mon wget
find passwd which
flash pidof while
flash_erase ping whois
flash_eraseall ping6 wscd
flash_test pkill xargs
flock pmap xz
for popd xzcat
free popmaildir yes
fsync poweroff zcat
ftpd powertop zm_mtd
ftpget printf {
ftpput ps }
function pstree
gdmmon pushd
Code: Select all
# lsmod
Tainted: G
usb_f_acm 3784 1 - Live 0xcf0a5000
g_ether 34646 0 - Live 0xcf097000
libcomposite 26185 2 usb_f_acm,g_ether, Live 0xcf08c000
u_serial 15161 2 usb_f_acm,libcomposite, Live 0xcf085000
configfs 17334 3 usb_f_acm,libcomposite, Live 0xcf07c000
wimax 3888 0 - Live 0xcf078000 (O)
nf_nat_ftp 1264 0 - Live 0xcf074000
nf_conntrack_ftp 5431 1 nf_nat_ftp, Live 0xcf06f000
iptable_mangle 936 1 - Live 0xcf06b000
xt_TCPMSS 1928 1 - Live 0xcf067000
ipt_MASQUERADE 1315 1 - Live 0xcf063000
iptable_nat 2170 1 - Live 0xcf05f000
nf_conntrack_ipv4 10145 2 - Live 0xcf058000
nf_defrag_ipv4 836 1 nf_conntrack_ipv4, Live 0xcf054000
nf_nat_ipv4 2795 1 iptable_nat, Live 0xcf050000
nf_nat 10433 4 nf_nat_ftp,ipt_MASQUERADE,iptable_nat,nf_nat_ipv4, Live 0xcf04a000
iptable_filter 808 1 - Live 0xcf046000
xt_hashlimit 5574 0 - Live 0xcf041000
xt_conntrack 2476 1 - Live 0xcf03d000
xt_mark 752 0 - Live 0xcf039000
xt_connmark 1304 0 - Live 0xcf002000
nf_conntrack 52232 9 nf_nat_ftp,nf_conntrack_ftp,ipt_MASQUERADE,iptable_nat,nf_conntrack_ipv4,nf_nat_ipv4,nf_nat,xt_conntrack,xt_connmark, Live 0xcf025000
ip_tables 8847 3 iptable_mangle,iptable_nat,iptable_filter, Live 0xcf01f000
gdmlte 32609 0 - Live 0xcf014000 (O)
modem 51583 0 - Live 0xcf004000 (O)
board 1053 0 [permanent], Live 0xcf000000 (O)
Code: Select all
# cat /proc/cpuinfo
processor : 0
model name : ARMv7 Processor rev 4 (v7b)
BogoMIPS : 1652.73
Features : swp half fastmult vfp edsp neon vfpv3 tls vfpv4 idiva
CPU implementer : 0x41
CPU architecture: 7
CPU variant : 0x0
CPU part : 0xc07
CPU revision : 4
Hardware : GCT GDM7243
Revision : 0000
Serial : 0000000000000000
Code: Select all
# mount
rootfs on / type rootfs (rw)
ubi0:rootfs on / type ubifs (ro,relatime)
proc on /proc type proc (rw,relatime)
ram on /var type ramfs (rw,relatime)
sys on /sys type sysfs (rw,relatime)
devpts on /dev/pts type devpts (rw,relatime,mode=666)
Code: Select all
# cat /proc/meminfo
MemTotal: 75776 kB
MemFree: 46312 kB
Buffers: 0 kB
Cached: 9096 kB
SwapCached: 0 kB
Active: 8204 kB
Inactive: 6360 kB
Active(anon): 5468 kB
Inactive(anon): 0 kB
Active(file): 2736 kB
Inactive(file): 6360 kB
Unevictable: 0 kB
Mlocked: 0 kB
SwapTotal: 0 kB
SwapFree: 0 kB
Dirty: 0 kB
Writeback: 0 kB
AnonPages: 5488 kB
Mapped: 6292 kB
Shmem: 0 kB
Slab: 10360 kB
SReclaimable: 796 kB
SUnreclaim: 9564 kB
KernelStack: 680 kB
PageTables: 476 kB
NFS_Unstable: 0 kB
Bounce: 0 kB
WritebackTmp: 0 kB
CommitLimit: 37888 kB
Committed_AS: 304100 kB
VmallocTotal: 679936 kB
VmallocUsed: 27968 kB
VmallocChunk: 344060 kB
Code: Select all
# halt
starting pid 1493, tty '': '/sbin/reboot'
The system is going down NOW!
Sent SIGTERM to all processes
[bmon] Done hibernation ret=-512
Jun 20 15:10:43 sdkd: Preparing for suicide
Jun 20 15:10:43 sdkd: <Sdk_srv>[signal_trap check ok]
lted: Preparing for suicide
Jun 20 15:10:43 lted: Preparing for suicide
ugserver: [signal_trap 1080]preparing for exit.
Jun 20 15:10:43 ugserver: [sign[SMS]Preparing for exit
[SMS]thread exit...
lted_client_init_ex successlted_client_init_ex successUSIM driver release
lted_client_init_ex successlted: [DEVICE] client 2 seems detached
Jun 20 15:10:44 lted: [DEVICE] client 2 seems detached
[SMS]Exit
lted: [DEVICE] client 4 seems detached
Jun 20 15:10:44 lted: [DEVICE] client 4 seems detached
lted: Deinitializing client 0
Jun 20 15:10:44 lted: Deinitializing client 0
lted: Deinitializing client 1
Jun 20 15:10:44 lted: Deinitializing client 1
lted: Deinitializing client 3
Jun 20 15:10:44 lted: Deinitializing client 3
send failed: Connection refused
lted_client_init_ex successlted: Deinitializing client 5
Jun 20 15:10:44 lted: Deinitializing client 5
Jun 20 15:10:44 sdkd: wimax user driver died
Jun 20 15:10:44 sdkd: [SERVER] dev_send_hci write(-1) - cmd (4)
lted: lted terminated
Jun 20 15:10:44 lted: lted terminated
Sent SIGKILL to all processes
Requesting system halt
System halted.
Build Info:
date: 2018/01/17-16:44:06
user: swdev@sw-Vostro-3900
svnr: r ()
pkgv: 0.60.3.3.0
appv: 0.60.3.3.0
src: /home2/swdev/GCT/cat6_bypass_kaicheng_0117/GCT_SDK0.57.3.2.0_CAT6_BYPASS
Config Info:
PRODUCT: gdm7243qt
PLATFORM_STANDALONE
HZ=1000
NET_NATQ2
NET_VLANQ
RTC_TIMER
PM_IDLE
PM_IDLE_DFRD_TIMER
IPC_CACHEABLE
System pNq
+ 1x UART dodatek
