Code: Select all
UAP-AC-Pro-Gen2-BZ.6.6.77# dmesg
[ 0.000000] Linux version 4.4.153 (builder@bionic-builder2) (gcc version 5.4.0 (LEDE GCC 5.4.0 r3979-2252731af4) ) #0 Thu Aug 30 12:10:54 2018
[ 0.000000] MyLoader: sysp=bd9b32f6, boardp=a3fb27e5, parts=2a2c8fb0
[ 0.000000] bootconsole [early0] enabled
[ 0.000000] CPU0 revision is: 00019750 (MIPS 74Kc)
[ 0.000000] SoC: Qualcomm Atheros QCA956X ver 1 rev 0
[ 0.000000] Determined physical RAM map:
[ 0.000000] memory: 08000000 @ 00000000 (usable)
[ 0.000000] User-defined physical RAM map:
[ 0.000000] memory: 07ff3800 @ 00000000 (usable)
[ 0.000000] Initrd not found or empty - disabling initrd
[ 0.000000] Zone ranges:
[ 0.000000] Normal [mem 0x0000000000000000-0x0000000007ff2fff]
[ 0.000000] Movable zone start for each node
[ 0.000000] Early memory node ranges
[ 0.000000] node 0: [mem 0x0000000000000000-0x0000000007ff2fff]
[ 0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x0000000007ff2fff]
[ 0.000000] On node 0 totalpages: 32755
[ 0.000000] free_area_init_node: node 0, pgdat 803c6550, node_mem_map 81000960
[ 0.000000] Normal zone: 256 pages used for memmap
[ 0.000000] Normal zone: 0 pages reserved
[ 0.000000] Normal zone: 32755 pages, LIFO batch:7
[ 0.000000] Primary instruction cache 64kB, VIPT, 4-way, linesize 32 bytes.
[ 0.000000] Primary data cache 32kB, 4-way, VIPT, cache aliases, linesize 32 bytes
[ 0.000000] pcpu-alloc: s0 r0 d32768 u32768 alloc=1*32768
[ 0.000000] pcpu-alloc: [0] 0
[ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 32499
[ 0.000000] Kernel command line: console=tty0 panic=3 ubntbootid=1 mtdparts=ath-nor0:384k(u-boot),64k(u-boot-env),7744k(kernel0),7744k(kernel1),128k(bs),256k(cfg),64k(EEPROM) mem=131022K ubootver=unifi-v2.0.16.313-gca8cd509 ramoops.mem_address=0x7ff3800 ramoops.mem_size=51200 ramoops.record_size=24576 rootfstype=squashfs,jffs2 noinitrd
[ 0.000000] PID hash table entries: 512 (order: -1, 2048 bytes)
[ 0.000000] Dentry cache hash table entries: 16384 (order: 4, 65536 bytes)
[ 0.000000] Inode-cache hash table entries: 8192 (order: 3, 32768 bytes)
[ 0.000000] Writing ErrCtl register=00000000
[ 0.000000] Readback ErrCtl register=00000000
[ 0.000000] Memory: 119068K/131020K available (2917K kernel code, 146K rwdata, 528K rodata, 6512K init, 266K bss, 11952K reserved, 0K cma-reserved)
[ 0.000000] SLUB: HWalign=32, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
[ 0.000000] NR_IRQS:51
[ 0.000000] Clocks: CPU:775.000MHz, DDR:650.000MHz, AHB:258.333MHz, Ref:25.000MHz
[ 0.000000] clocksource: MIPS: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 4932285024 ns
[ 0.000007] sched_clock: 32 bits at 387MHz, resolution 2ns, wraps every 5541893118ns
[ 0.008194] Calibrating delay loop... 385.84 BogoMIPS (lpj=1929216)
[ 0.071008] pid_max: default: 32768 minimum: 301
[ 0.075970] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.082947] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.093209] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[ 0.103601] futex hash table entries: 256 (order: -1, 3072 bytes)
[ 0.112740] NET: Registered protocol family 16
[ 0.117743] ramoops: using module parameters
[ 0.122377] pstore: Registered ramoops as persistent store backend
[ 0.128922] ramoops: attached 0xc800@0x7ff3800, ecc: 0/0
[ 0.135578] MIPS: machine is Generic AR71XX/AR724X/AR913X based board
[ 0.142416] calling mips_machine_setup on mips_machtype:f1
[ 0.148207] MIPS: machine is Ubiquiti Networks Inc. (c) gen2
[ 0.154167] Board: Ubiquiti UAP-AC-Pro-Gen2
[ 0.378819] registering PCI controller with io_map_base unset
[ 0.396515] PCI host bridge to bus 0000:00
[ 0.400838] pci_bus 0000:00: root bus resource [mem 0x12000000-0x13ffffff]
[ 0.408117] pci_bus 0000:00: root bus resource [io 0x0001]
[ 0.413984] pci_bus 0000:00: root bus resource [??? 0x00000000 flags 0x0]
[ 0.421138] pci_bus 0000:00: No busn resource found for root bus, will use [bus 00-ff]
[ 0.429508] pci 0000:00:00.0: [168c:003c] type 00 class 0x028000
[ 0.429534] pci 0000:00:00.0: invalid calibration data
[ 0.434975] pci 0000:00:00.0: reg 0x10: [mem 0x00000000-0x001fffff 64bit]
[ 0.435030] pci 0000:00:00.0: reg 0x30: [mem 0x00000000-0x0000ffff pref]
[ 0.435087] pci 0000:00:00.0: supports D1
[ 0.435099] pci 0000:00:00.0: PME# supported from D0 D1 D3hot
[ 0.435282] pci_bus 0000:00: busn_res: [bus 00-ff] end is updated to 00
[ 0.435312] pci 0000:00:00.0: BAR 0: assigned [mem 0x12000000-0x121fffff 64bit]
[ 0.443030] pci 0000:00:00.0: BAR 6: assigned [mem 0x12200000-0x1220ffff pref]
[ 0.450663] pci 0000:00:00.0: using irq 40 for pin 1
[ 0.456041] lo: assigned ifindex: 1
[ 0.460279] clocksource: Switched to clocksource MIPS
[ 0.466862] NET: Registered protocol family 2
[ 0.472145] TCP established hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.479496] TCP bind hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.486238] TCP: Hash tables configured (established 1024 bind 1024)
[ 0.493026] UDP hash table entries: 256 (order: 0, 4096 bytes)
[ 0.499191] UDP-Lite hash table entries: 256 (order: 0, 4096 bytes)
[ 0.506086] NET: Registered protocol family 1
[ 0.510772] PCI: CLS 0 bytes, default 32
[ 6.586131] Crashlog allocated RAM at address 0x3f00000
[ 6.604608] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 6.610813] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
[ 6.623455] io scheduler noop registered
[ 6.627597] io scheduler deadline registered (default)
[ 6.633251] Serial: 8250/16550 driver, 1 ports, IRQ sharing disabled
[ 6.660369] serial8250.0: ttyS0 at MMIO 0x18020000 (irq = 11, base_baud = 1562500) is a 16550A
[ 6.672225] m25p80 spi0.0: mx25l12805d (16384 Kbytes)

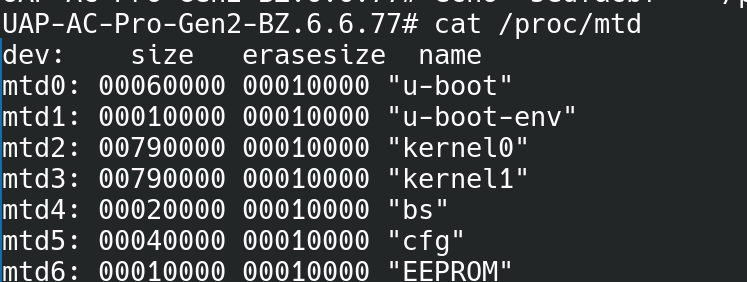

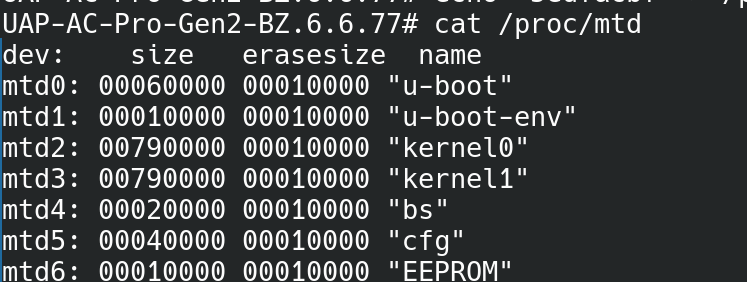

[ 6.677571] 7 cmdlinepart partitions found on MTD device ath-nor0
[ 6.684031] Creating 7 MTD partitions on "ath-nor0":
[ 6.689256] 0x000000000000-0x000000060000 : "u-boot"
[ 6.696449] 0x000000060000-0x000000070000 : "u-boot-env"
[ 6.703488] 0x000000070000-0x000000800000 : "kernel0"
[ 6.710195] 0x000000800000-0x000000f90000 : "kernel1"
[ 6.716973] 0x000000f90000-0x000000fb0000 : "bs"
[ 6.723300] 0x000000fb0000-0x000000ff0000 : "cfg"
[ 6.729669] 0x000000ff0000-0x000001000000 : "EEPROM"
[ 6.768254] switch0: Atheros AR8337 rev. 2 switch registered on ag71xx-mdio.0
[ 7.520821] random: nonblocking pool is initialized
[ 7.797493] libphy: ag71xx_mdio: probed
[ 8.391725] ag71xx ag71xx.0: connected to PHY at ag71xx-mdio.0:00 [uid=004dd036, driver=Atheros AR8216/AR8236/AR8316]
[ 8.402941] eth0: assigned ifindex: 2
[ 8.407302] eth0: Atheros AG71xx at 0xb9000000, irq 4, mode:SGMII
[ 8.415470] NET: Registered protocol family 10
[ 8.423490] NET: Registered protocol family 17
[ 8.428236] bridge: automatic filtering via arp/ip/ip6tables has been deprecated. Update your scripts to load br_netfilter if you need this.
[ 8.441605] Bridge firewalling registered
[ 8.445922] 8021q: 802.1Q VLAN Support v1.8
[ 8.450891] bootconsole [early0] disabled
[ 8.456602] Warning: unable to open an initial console.
[ 8.492098] Freeing unused kernel memory: 6512K
[ 8.502642] init: Console is alive
[ 8.502850] init: - watchdog -
[ 8.534118] kmodloader: loading kernel modules from /etc/modules-boot.d/*
[ 8.545065] input: gpio-keys-polled as /devices/platform/gpio-keys-polled/input/input0
[ 8.545916] kmodloader: done loading kernel modules from /etc/modules-boot.d/*
[ 8.554019] init: - preinit -
[ 8.682606] IPv6: ADDRCONF(NETDEV_UP): eth0: link is not ready
[ 9.272200] ubnt_common: module license 'Proprietary' taints kernel.
[ 9.272219] Disabling lock debugging due to kernel taint
[ 9.276470] [UBNT_STA_HT] Initialize hash table
[ 9.276526] [UBNT_STA_HT] done
[ 9.276536] creating /proc/ubnt_peek/
[ 9.276555] creating /proc/ubnt_peek/peek_disable
[ 9.276565] creating /proc/ubnt_peek/loop_check
[ 9.276575] creating /proc/ubnt_peek/loop_debug
[ 9.276585] creating /proc/ubnt_peek/loop_uif
[ 9.276595] creating /proc/ubnt_peek/tcp_debug_mac
[ 9.276604] creating /proc/ubnt_peek/tcp_debug_connections
[ 9.276627] qos: registered
[ 9.276634] creating /proc/ubnt_frame_id/
[ 9.276646] creating /proc/ubnt_frame_id/netdevs
[ 9.276675] creating /proc/ui_bandsteer/
[ 9.276685] Initialize connection observer
[ 9.276707] creating /proc/ui_neighbor/
[ 9.276719] creating /proc/ui_neighbor/2g_chans
[ 9.276729] creating /proc/ui_neighbor/5g_chans
[ 9.276738] creating /proc/ui_neighbor/6g_chans
[ 9.276749] ubnt-neighbor-list timer init
[ 9.292767] Init caladdr[0]=0xbfff1000 caladdr[1]=0xbfff5000
[ 9.292767]
[ 9.292815] flash (0xbfff1000) magic (0x0202) is wrong
[ 9.292852] flash (0xbfff1000) magic (0x0202) is wrong
[ 9.292888] flash (0xbfff1000) magic (0x0202) is wrong
[ 9.293530] Init caladdr[0]=0xbfff1000 caladdr[1]=0xbfff5000
[ 9.293530]
[ 9.293572] flash (0xbfff5000) magic (0x4408) is wrong
[ 9.293611] flash (0xbfff5000) magic (0x4408) is wrong
[ 9.293654] flash (0xbfff5000) magic (0x4408) is wrong
[ 9.295958] ubnthal: Ubiquiti UAP-AC-Pro-Gen2
[ 9.295973] ubnthal: Dragonfly: maxPower 22 powerOffset 0 txmask 7 antenna 4 [0] gain 3 caps 0x4024
[ 9.295986] ubnthal: Peregrine: maxPower 22 powerOffset 0 txmask 7 antenna 4 [0] gain 3 caps 0x3024024
[ 9.296501] creating procfs for ubnthal
[ 9.296522] creating proc entry for system.info
[ 9.296532] creating proc entry for board
[ 9.296552] Registering char device sflash (200) succeeds
[ 9.296561] creating proc entry for wifi0
[ 9.296571] creating proc entry for wifi1
[ 9.296583] creating procfs for status
[ 9.296592] creating proc entry for IsDefault
[ 9.296601] creating proc entry for IsLocated
[ 9.296610] creating proc entry for IsIsolated
[ 9.296619] creating proc entry for IsLte
[ 9.296628] creating proc entry for ControllerPort
[ 9.296637] creating proc entry for ControllerHost
[ 9.296646] creating proc entry for AnonNetAppId
[ 9.296655] creating proc entry for MeshStatus
[ 9.341772] creating /proc/gpio/
[ 9.341799] /proc/gpio/ledbar_control
[ 9.341810] /proc/gpio/led_pattern
[ 9.341825] /proc/gpio/led_tempo
[ 9.341835] /proc/gpio/poe_passthrough
[ 12.473299] sh (311): drop_caches: 1
[ 15.287607] procd: - early -
[ 15.287700] procd: - watchdog -
[ 15.831213] procd: - watchdog -
[ 15.831351] procd: failed to set stdio
[ 15.831418] procd: - ubus -
[ 15.882864] procd: - init -
[ 15.987337] reset-handler[508]: [error] reset-handler.reset_handler_main(): Failed to register reset listener, error -5
[ 16.157141] kmodloader: loading kernel modules from /etc/modules.d.sysinit/*
[ 16.160995] ip6_tables: (C) 2000-2006 Netfilter Core Team
[ 16.182404] nf_conntrack version 0.5.0 (1962 buckets, 7848 max)
[ 16.189310] kmodloader: failed to load nf_nat_ipv6
[ 16.211426] Ebtables v2.0 registered
[ 16.213486] ip_tables: (C) 2000-2006 Netfilter Core Team
[ 16.228442] Netfilter messages via NETLINK v0.30.
[ 16.251054] xt_time: kernel timezone is -0000
[ 16.257740] ip_set: protocol 6
[ 16.269416] kmodloader: 2 modules could not be probed
[ 16.269550] kmodloader: dependency not loaded nf_nat_ipv6
[ 16.269618] kmodloader: - ip6table_nat - 1
[ 16.269706] kmodloader: - nf_nat_ipv6 - 0
[ 16.304078] kmodloader: loading kernel modules from /etc/modules.d/*
[ 16.331377] QCA multicast snooping installed successfully
[ 16.379529] u32 classifier
[ 16.379544] input device check on
[ 16.379551] Actions configured
[ 16.382177] Mirror/redirect action on
[ 16.408493] teql0: assigned ifindex: 3
[ 16.425405] nf_tables: (c) 2007-2009 Patrick McHardy <kaber@trash.net>
[ 16.510098] kmodloader: done loading kernel modules from /etc/modules.d/*
[ 19.746593] #ubntconf: ERROR: wevent: unifi.mcip not found
[ 19.746802] #ubntconf: ERROR: wevent: unifi.key not found
[ 19.765364] #ubntconf: ERROR: route: add ip 224.0.0.0, netmask 224.0.0.0, gw default, dev br0 failed
[ 19.765601] #ubntconf: ERROR: route: del ip 224.0.0.0, netmask 224.0.0.0, gw default, dev br0 failed
[ 21.169139] ath_dfs: Version 2.0.0
[ 21.169139] Copyright (c) 2005-2006 Atheros Communications, Inc. All Rights Reserved
[ 21.181708] ath_spectral: Version 2.0.0
[ 21.181708] Copyright (c) 2005-2009 Atheros Communications, Inc. All Rights Reserved
[ 21.312296] wevent: registered
[ 21.610515] ath_hal: 0.9.17.1 (AR9380, DEBUG, REGOPS_FUNC, WRITE_EEPROM, TX_DATA_SWAP, RX_DATA_SWAP, 11D)
[ 21.890643] ath_rate_atheros: Copyright (c) 2001-2005 Atheros Communications, Inc, All Rights Reserved
[ 22.184217] ath_dev: Copyright (c) 2001-2007 Atheros Communications, Inc, All Rights Reserved
[ 22.202681] JET_PRINT: init_ath_wmac[242]: Checking devid: 3f
[ 22.202699] __ath_attach: Set global_scn[0]
[ 22.202708] *** All the minfree values should be <= ATH_TXBUF-32, otherwise default value will be used instead ***
[ 22.202715] ACBKMinfree = 48
[ 22.202722] ACBEMinfree = 32
[ 22.202728] ACVIMinfree = 16
[ 22.202734] ACVOMinfree = 0
[ 22.202740] CABMinfree = 48
[ 22.202747] UAPSDMinfree = 0
[ 22.202753] ATH_TXBUF=540
[ 22.202779] register caladdr[0]=0x803cb2ac caladdr[1]=0xbfff5000
[ 22.202779]
[ 22.207608] Bootstrap clock 25MHz
[ 22.211037] Enterprise mode: 0x03bda000
[ 22.211303] Restoring Cal data from DRAM
[ 22.211343]
[ 22.211343] ART Version : -48.0.0
[ 22.211343] SW Image Version : -48.0.0.0.0
[ 22.211343] Board Revision :
[ 22.211490] ath_hal: Ubiquiti Dragonfly
[ 22.211502] ath_hal: maxPower 44 minPower 0 powerOffset 0
[ 22.211521] ar9300_attach: nf_2_nom -110 nf_2_max -60 nf_2_min -125
[ 22.212957] SPECTRAL : get_capability not registered
[ 22.212970] HAL_CAP_PHYDIAG : Capable
[ 22.212980] SPECTRAL : Need to fix the capablity check for RADAR (spectral_attach : 237)
[ 22.212988] SPECTRAL : get_capability not registered
[ 22.212994] HAL_CAP_RADAR : Capable
[ 22.213003] SPECTRAL : Need to fix the capablity check for SPECTRAL
[ 22.213003] (spectral_attach : 242)
[ 22.213013] SPECTRAL : get_capability not registered
[ 22.213020] HAL_CAP_SPECTRAL_SCAN : Capable
[ 22.213026] SPECTRAL : get_tsf64 not registered
[ 22.213057] spectral_init_netlink 78 NULL SKB
[ 22.213068] SPECTRAL : No ADVANCED SPECTRAL SUPPORT
[ 22.213074] SPECTRAL :----- module attached
[ 22.216665] Starting random number generator thread
[ 22.217339] ieee80211_mac_global_ic_attach: global ic ref 0x807e0420
[ 22.217383] ath_get_caps[6196] rx chainmask mismatch actual 7 sc_chainmak 0
[ 22.217395] ath_get_caps[6171] tx chainmask mismatch actual 7 sc_chainmak 0
[ 22.223002] band steering initialized for direct attach hardware
[ 22.223018] ieee80211_bsteering_attach: Band steering initialized
[ 22.223110] ath_attach_dfs[12657] dfsdomain 1
[ 22.223119] dfs_attach: event log enabled by default
[ 22.229069] SPECTRAL : module already attached
[ 22.229084] ath_attach: Set global_ic[1]..gloabl_ic ptr:80724510
[ 22.229133] osif_wrap_attach:444 osif wrap attached
[ 22.229163] osif_wrap_devt_init:405 osif wrap dev table init done
[ 22.229173] Wrap Attached: Wrap_com =85720400 ic->ic_wrap_com=85720400 &wrap_com->wc_devt=85720400
[ 22.230975] ath_tx_paprd_init sc 85710000 PAPRD disabled in HAL
[ 22.233306] wifi0: assigned ifindex: 4
[ 22.251098] wifi0: Atheros 956X: mem_start: =0xb8100000, mem_end: =0xb8120000, irq=47
[ 22.251239] ath_da_pci: (Atheros/multi-bss)
[ 22.630993] ath_ol_pci: (Atheros/multi-bss)
[ 22.631422] hif_pci_enable_bus: con_mode = 0x0, device_id = 0x3c
[ 22.631460] ath_ol_pci 0000:00:00.0: BAR 0: assigned [mem 0x12000000-0x121fffff 64bit]
[ 22.631494] PCI: Enabling device 0000:00:00.0 (0000 -> 0002)
[ 22.631519] hif_pci_enable_bus: hif_enable_pci donehif_pci_enable_bus: hif_type = 0x6, target_type = 0x7hif_pci_enable_bus: hif_pci_probe_tgt_wakeup donehif_target_sync: Loop checking FW signalhif_target_sync: Got FW signal, retries = 25hif_config_ce: ce_init donehif_config_ce: X, ret = 0hif_set_hia: Ehif_set_hia_extnd: E
[ 23.013013]
[ 23.013013] CLOCK PLL skipped
[ 23.015038] hif_pci_bus_configure: hif_set_hia donehif_configure_irq: Ehif_pci_configure_legacy_irq: Ehif_pci_configure_legacy_irq: X, ret = 0hif_enable: X OKhif_napi_create: NAPI structures initializedhif_napi_create: NAPI id 6 created for pipe 5qca_napi_create: napi instance 32 created on pipe 4
[ 23.015185] hif_napi_event: received evnt: CONF cmd; v = 1 (state=0x1)hif_napi_event: setting configuration to ON
[ 23.015185] __ol_ath_attach() Allocated scn 85200420
[ 23.016238] __ol_ath_attach: dev name wifi1
[ 23.016254] ol_ath_attach interface_id 1
[ 23.016839] register caladdr[0]=0x803cb2ac caladdr[1]=0x803c9838
[ 23.016839]
[ 23.016860]
[ 23.016860] ol_target_init: Load Cal Data from DRAM addr 803c9838, scn->cal_in_flash=0
[ 23.016881] ol_target_init() BMI inited.
[ 23.016969] ol_target_init() BMI Get Target Info.
[ 23.016980] Chip id: 0x7, chip version: 0x4100016c
[ 23.016986]
[ 23.016986] CE WAR Disabled
[ 23.017096] NUM_DEV=1 FWMODE=0x2 FWSUBMODE=0x0 FWBR_BUF 0
[ 23.017232] ol_target_init() configure Target .
[ 23.017313] ol_transfer_bin_file: flash data file defined
[ 23.017342] qc98xx_verify_checksum: flash checksum passed: 0x90ef
[ 23.017351] ol_transfer_bin_file 4086: Download Flash data len 2116
[ 23.017607] Board extended Data download address: 0x0
[ 23.021705] ol_transfer_bin_file: UBNT_FLASH_FILE
[ 23.021750] ol_ath_hal: Ubiquiti Peregrine
[ 23.021761] ol_ath_hal: maxPower 44 minPower 0 powerOffset 0
[ 23.021771] ol_transfer_bin_file 4142: Download UBNT card data len 36
[ 23.021945]
[ 23.021945] Mission mode: Firmware CHIP Version 0
[ 23.022015] ol_transfer_bin_file: Downloading firmware file: AR9888/hw.2/athwlan.bin
[ 23.024202] ol_transfer_bin_file 3875: downloading file 1, Download data len 237496
[ 24.024147] ol_target_init() Download FW done.
[ 24.024560] ol_ath_attach() WMI attached. wmi_handle 8541a000
[ 24.024575] wmi_unified_register_event_handler: Event id 62 is unavailable
[ 24.024585] +htc_create .. HIF :85270000-htc_create: (0x85649000)
[ 24.024637] htc_wmi_init() HT Create . 85649000
[ 24.024706] htc_wmi_init 7969 host_enable 0 nss_nwifi_offload 0
[ 24.024717] ol_ath_set_default_tgt_config : AC Minfree buffer allocation through module param (umac.ko)
[ 24.024724] OL_ACBKMinfree : 0
[ 24.024730] OL_ACBEMinfree : 0
[ 24.024737] OL_ACVIMinfree : 0
[ 24.024743] OL_ACVOMinfree : 0
[ 24.024752] hif_enable_fastpath, Enabling fastpath mode
[ 24.024756] +HWT
[ 24.024769] hif_completion_thread_startup: pipe_num:0 pipe_info:0x85273bachif_completion_thread_startup: pipe_num:3 pipe_info:0x85273c6chif_completion_thread_startup: pipe_num:4 pipe_info:0x85273cac
[ 24.031639] -HWT
[ 24.031762] Startup Mode-0 set
[ 24.031773]
[ 24.031773] <=== cfg max peer id 1056 ====>
[ 24.032826] htt_peer_map_timer_init Enter pdev 851e8000 hrtimer 851ec970
[ 24.032847]
[ 24.032847] htt_alloc_peer_map_mem : Alloc Success : host q vaddr 8528c000 paddr 528c000
[ 24.032860]
[ 24.032860] htt_alloc_peer_map_mem : Flush Interval Configured to 256 pkts
[ 24.035971] ol_txrx_pdev_attach: 1424 tx desc's allocated ; range starts from 84840000
[ 24.039022] Firmware_Build_Number:0
[ 24.039040] host/RAM_fw Build Ver Mismatch: H:0x270F, F:0x0 !
[ 24.039049] FW wireless modes: 0x1f9001
[ 24.039059] num_rf_chain:0x00000003 ht_cap_info:0x0000085b vht_cap_info:0x338001b2 vht_supp_mcs:0x0000ffea
[ 24.039077] wmi_service_coex_gpio 0, wmi_service_4_wire_coex_support 0, coex_version 0
[ 24.039105]
[ 24.039105] Sending Ext resource cfg: HOST PLATFORM as 1
[ 24.039105] fw_feature_bitmap as 50 to TGT
[ 24.039133] ol_ath_service_ready_event: tt_support: 0
[ 24.039171] ol_ath_service_ready_event: periodic_chan_stats: 1
[ 24.039179] ol_ath_service_ready_event: sw_cal_support_check_flag: 0
[ 24.039189] LARGE_AP enabled. num_peers 136, num_vdevs 8, num_tids 256
[ 24.039249] idx 0 req 1 num_units 0 num_unit_info 2 unit size 444 actual units 137
[ 24.039620] ol_ath_alloc_host_mem_chunk req_id 1 idx 0 num_units 137 unit_len 444,
[ 24.039631] Support not added yet for Service 91
[ 24.039638] Support not added yet for Service 92
[ 24.039644] No EXT_MSG send INIT now
[ 24.039658] chunk 0 len 60828 requested , ptr 0x4890000
[ 24.049028] FIRMWARE:
[ 24.056835] Version = 16777216 3 status = 0
[ 24.056871] ol_ath_connect_htc() WMI is ready
[ 24.056902] htt_h2t_frag_desc_bank_cfg_msg - HTT_H2T_MSG_TYPE_FRAG_DESC_BANK_CFG sent to FW for radio ID = 1
[ 24.056928] target uses HTT version 2.2; host uses 2.2
[ 24.061979] ol_ath_attach() connect HTC.
[ 24.061990] bypasswmi : 0
[ 24.062004] ol_regdmn_start: reg-domain param: regdmn=0, countryName=, wModeSelect=FFFFFFFF, netBand=FFFFFFFF, extendedChanMode=0.
[ 24.062048] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x2) flags 0x2150
[ 24.062115] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x4) flags 0xa0
[ 24.062125] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x8) flags 0xc0
[ 24.062134] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x20) flags 0xd0
[ 24.062144] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x40) flags 0x150
[ 24.062153] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x800) flags 0x10080
[ 24.062163] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x2000) flags 0x20080
[ 24.062173] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x4000) flags 0x40080
[ 24.062377] Add VHT80 channel: 5210
[ 24.062385] Add VHT80 channel: 5290
[ 24.062393] Add VHT80 channel: 5530
[ 24.062399] Add VHT80 channel: 5610
[ 24.062406] Add VHT80 channel: 5690
[ 24.062414] Add VHT80 channel: 5775
[ 24.062466] Skipping VHT80 channel 5825
[ 24.062479] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x200000) flags 0x4000100
[ 24.062489] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x400000) flags 0x8000100
[ 24.062569] ol_ath_phyerr_attach: called
[ 24.062657] freq=58
[ 24.062667] freq=106
[ 24.062673] freq=122
[ 24.062679] freq=138
[ 24.063573] ieee80211_bsteering_attach: Band steering initialized
[ 24.063589] ol_if_spectral_setup
[ 24.063632] SPECTRAL : get_capability not registered
[ 24.063639] HAL_CAP_PHYDIAG : Capable
[ 24.063648] SPECTRAL : Need to fix the capablity check for RADAR (spectral_attach : 237)
[ 24.063656] SPECTRAL : get_capability not registered
[ 24.063662] HAL_CAP_RADAR : Capable
[ 24.063671] SPECTRAL : Need to fix the capablity check for SPECTRAL
[ 24.063671] (spectral_attach : 242)
[ 24.063681] SPECTRAL : get_capability not registered
[ 24.063688] HAL_CAP_SPECTRAL_SCAN : Capable
[ 24.063694] SPECTRAL : get_tsf64 not registered
[ 24.063703] spectral_init_netlink 78 NULL SKB
[ 24.063765] Initializing vapid hashes
[ 24.063775] ol_if_dfs_setup: called
[ 24.063860] ol_if_dfs_attach: called; ptr=848c199c, radar_info=851119b0
[ 24.063870] dfs_attach: event log enabled by default
[ 24.065176] ieee80211_mac_global_ic_attach: global ic ref 0x85200420
[ 24.065212] >>>> CB Set 00000000
[ 24.066214] ol_ath_attach() UMAC attach .
[ 24.066222]
[ 24.066222] BURSTING enabled by default
[ 24.066271] ol_ath_attach: Set global_ic[2] ..ptr:80724510
[ 24.066292] osif_wrap_attach:444 osif wrap attached
[ 24.066322] osif_wrap_devt_init:405 osif wrap dev table init done
[ 24.066333] Wrap Attached: Wrap_com =85720a00 ic->ic_wrap_com=85720a00 &wrap_com->wc_devt=85720a00
[ 24.066343] __ol_ath_attach: hard_header_len reservation 58
[ 24.066359] wifi1: assigned ifindex: 5
[ 24.067207] ol_ath_thermal_mitigation_attach: TT not supported in FW
[ 24.078416] ol_ath_pci_probe num_radios=0, wifi_radios[0].sc = 85200420 wifi_radio_type = 2 subvendor = 0x0000 subdevice = 0x0000
[ 24.078457] ath_sysfs_diag_init: diag_fsattr
[ 24.088944] pktlog_init: Initializing Pktlog for AR9888, pktlog_hdr_size = 16
[ 25.031510] [wifi1] FWLOG: [45145] WAL_DBGID_TX_AC_BUFFER_SET ( 0x3, 0x1e, 0x460, 0x460, 0x0 )
[ 25.031548] [wifi1] FWLOG: [45145] WAL_DBGID_TX_AC_BUFFER_SET ( 0x12, 0x1e, 0x460, 0x460, 0x0 )
[ 25.031569] [wifi1] FWLOG: [45145] WAL_DBGID_TX_AC_BUFFER_SET ( 0x45, 0x1e, 0x460, 0x460, 0x0 )
[ 25.031590] [wifi1] FWLOG: [45145] WAL_DBGID_TX_AC_BUFFER_SET ( 0x67, 0x1e, 0x460, 0x460, 0x0 )
[ 25.031610] [wifi1] FWLOG: [45147] WHAL_ERROR_RESET_PM ( )
[ 25.031620] [wifi1] FWLOG: [45154] WAL_DBGID_DEV_RESET ( 0x1, 0x1, 0x1 )
[ 25.031635] [wifi1] FWLOG: [45160] ANI Enable: 0
[ 25.031648] [wifi1] FWLOG: [45160] ANI Set Fixed Rx Sensitivity: line:1071, aniEnabled:0x0, fixedRsSens:0x0
[ 25.031662] [wifi1] FWLOG: [45160] ANI Get Fixed Rx Sensitivity: sens_level:16, rssi::0x7f, cycpwr:0x7f
[ 25.031675] [wifi1] FWLOG: [45160] WHAL_ERROR_RESET_PM ( )
[ 25.031684] [wifi1] FWLOG: [45168] WAL_DBGID_DEV_RESET ( 0x1, 0x1, 0x1 )
[ 25.031699] [wifi1] FWLOG: [45168] WAL_DBGID_PDEV_INFO_PRINT ( 0x2a, 0x10, 0x10 )
[ 26.002030] ath_net80211_dfs_clist_update: called, cmd=1, nollist=00000000, nentries=0
[ 26.002142] ath_attach_dfs[12657] dfsdomain 1
[ 26.002153] dfs_attach: event log enabled by default
[ 26.021286] ath_net80211_dfs_clist_update: called, cmd=1, nollist=00000000, nentries=0
[ 26.021398] ath_attach_dfs[12657] dfsdomain 1
[ 26.021408] dfs_attach: event log enabled by default
[ 26.036736] wlan_vap_create : enter. devhandle=0x807e0420, opmode=IEEE80211_M_HOSTAP, flags=0x1
[ 26.036948] ieee80211_mbo_vattach:MBO Initialized
[ 26.036960] ieee80211_oce_vattach: OCE Initialized
[ 26.037175] wlan_vap_create : exit. devhandle=0x807e0420, vap=0x80590000, opmode=IEEE80211_M_HOSTAP, flags=0x1.
[ 26.037292] ath0: assigned ifindex: 6
[ 26.038065] VAP device ath0 created osifp: (856f0c20) os_if: (80590000)
[ 26.095186] setting antenna gain to 3
[ 26.162382] ath_net80211_dfs_clist_update: called, cmd=1, nollist=00000000, nentries=0
[ 26.162494] ath_attach_dfs[12657] dfsdomain 1
[ 26.162504] dfs_attach: event log enabled by default
[ 26.184295] WARNING: Fragmentation with HT mode NOT ALLOWED!!
[ 26.190953] setting antenna gain to 3
[ 26.224226] siwfreq
[ 26.224252] Set freq vap 0 stop send + 80590000
[ 26.224498] Set freq vap 0 stop send -80590000
[ 26.250293] Set wait done --80590000
[ 26.286369] isCountryCodeValid: EEPROM regdomain 0x0
[ 26.286428] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x2) flags 0x2150
[ 26.286497] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x4) flags 0xa0
[ 26.286507] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x8) flags 0xc0
[ 26.286516] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x20) flags 0xd0
[ 26.286526] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x40) flags 0x150
[ 26.286535] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x800) flags 0x10080
[ 26.286545] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x2000) flags 0x20080
[ 26.286554] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x4000) flags 0x40080
[ 26.286758] Add VHT80 channel: 5210
[ 26.286766] Add VHT80 channel: 5290
[ 26.286774] Add VHT80 channel: 5530
[ 26.286780] Add VHT80 channel: 5610
[ 26.286787] Add VHT80 channel: 5690
[ 26.286795] Add VHT80 channel: 5775
[ 26.286868] Skipping VHT80 channel 5825
[ 26.286881] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x200000) flags 0x4000100
[ 26.286891] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x400000) flags 0x8000100
[ 26.287961] freq=58
[ 26.287995] freq=106
[ 26.288002] freq=122
[ 26.288008] freq=138
[ 26.295158] isCountryCodeValid: EEPROM regdomain 0x0
[ 26.295216] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x2) flags 0x2150
[ 26.295285] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x4) flags 0xa0
[ 26.295295] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x8) flags 0xc0
[ 26.295305] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x20) flags 0xd0
[ 26.295314] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x40) flags 0x150
[ 26.295324] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x800) flags 0x10080
[ 26.295333] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x2000) flags 0x20080
[ 26.295343] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x4000) flags 0x40080
[ 26.295554] Add VHT80 channel: 5210
[ 26.295562] Add VHT80 channel: 5290
[ 26.295569] Add VHT80 channel: 5530
[ 26.295576] Add VHT80 channel: 5610
[ 26.295582] Add VHT80 channel: 5690
[ 26.295590] Add VHT80 channel: 5775
[ 26.295645] Skipping VHT80 channel 5825
[ 26.295658] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x200000) flags 0x4000100
[ 26.295668] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x400000) flags 0x8000100
[ 26.296799] freq=58
[ 26.296832] freq=106
[ 26.296839] freq=122
[ 26.296859] freq=138
[ 26.300411] wlan_vap_create : enter. devhandle=0x85200420, opmode=IEEE80211_M_STA, flags=0x3
[ 26.300496] send_vdev_create_cmd_non_tlv: ID = 0 Type = 2, Subtype = 0 VAP Addr = 80:2a:a8:48:60:d5:
[ 26.300787] send_set_ps_mode_cmd_non_tlv:set psmode=1
[ 26.300983] wlan_vap_create : exit. devhandle=0x85200420, vap=0x804c8000, opmode=IEEE80211_M_STA, flags=0x3.
[ 26.301165] ath1: assigned ifindex: 7
[ 26.301948] VAP device ath1 created osifp: (8059d420) os_if: (804c8000)
[ 26.362940] Resetting spectral chainmask to Rx chainmask
[ 26.425755] isCountryCodeValid: EEPROM regdomain 0x0
[ 26.425816] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x2) flags 0x2150
[ 26.425886] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x4) flags 0xa0
[ 26.425897] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x8) flags 0xc0
[ 26.425906] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x20) flags 0xd0
[ 26.425916] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x40) flags 0x150
[ 26.425926] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x800) flags 0x10080
[ 26.425935] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x2000) flags 0x20080
[ 26.425945] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x4000) flags 0x40080
[ 26.426157] Add VHT80 channel: 5210
[ 26.426164] Add VHT80 channel: 5290
[ 26.426172] Add VHT80 channel: 5530
[ 26.426179] Add VHT80 channel: 5610
[ 26.426185] Add VHT80 channel: 5690
[ 26.426193] Add VHT80 channel: 5775
[ 26.426249] Skipping VHT80 channel 5825
[ 26.426262] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x200000) flags 0x4000100
[ 26.426272] ol_regdmn_init_channels: !avail mode 0x1f9001 (0x400000) flags 0x8000100
[ 26.427477] freq=58
[ 26.427488] freq=106
[ 26.427495] freq=122
[ 26.427501] freq=138
[ 26.451964] WARNING: Fragmentation with HT mode NOT ALLOWED!!
[ 26.490011] siwfreq
[ 26.586042] Command not supported
[ 26.699375] creating /proc/ui_neighbor/802AA84660D5
[ 26.699405]
[ 26.699405] DES SSID SET=802AA84660D5
[ 26.704626] Please make sure minrate_data or minrate_cck_disable has already been set
[ 26.765776] send_set_ps_mode_cmd_non_tlv:set psmode=0
[ 26.765883] send_set_ps_mode_cmd_non_tlv:set psmode=0
[ 26.775794] Please make sure minrate_data or minrate_cck_disable has already been set
[ 26.992236] br0: assigned ifindex: 8
[ 27.031657] [wifi1] FWLOG: [47438] ANI Enable: 0
[ 27.031682] [wifi1] FWLOG: [47438] ANI Get Fixed Rx Sensitivity: sens_level:16, rssi::0x7f, cycpwr:0x7f
[ 27.031696] [wifi1] FWLOG: [47438] WHAL_ERROR_RESET_PM ( )
[ 27.031708] [wifi1] FWLOG: [47445] WAL_DBGID_DEV_RESET ( 0x1, 0x1, 0x1 )
[ 27.031725] [wifi1] FWLOG: [47445] WAL_DBGID_PDEV_INFO_PRINT ( 0x2a, 0x10, 0x10 )
[ 27.031741] [wifi1] FWLOG: [47447] ANI Enable: 0
[ 27.031751] [wifi1] FWLOG: [47447] ANI Get Fixed Rx Sensitivity: sens_level:16, rssi::0x7f, cycpwr:0x7f
[ 27.031764] [wifi1] FWLOG: [47447] WHAL_ERROR_RESET_PM ( )
[ 27.031774] [wifi1] FWLOG: [47454] WAL_DBGID_DEV_RESET ( 0x1, 0x1, 0x1 )
[ 27.031789] [wifi1] FWLOG: [47454] WAL_DBGID_PDEV_INFO_PRINT ( 0x2a, 0x10, 0x10 )
[ 27.031805] [wifi1] FWLOG: [47505] WAL_DBGID_DEV_RESET ( 0x1, 0x1, 0x1 )
[ 27.031820] [wifi1] FWLOG: [47581] ANI Enable: 0
[ 27.031830] [wifi1] FWLOG: [47581] ANI Get Fixed Rx Sensitivity: sens_level:16, rssi::0x7f, cycpwr:0x7f
[ 27.031843] [wifi1] FWLOG: [47588] WAL_DBGID_DEV_RESET ( 0x1, 0x1, 0x1 )
[ 27.031858] [wifi1] FWLOG: [47588] WAL_DBGID_PDEV_INFO_PRINT ( 0x2a, 0x10, 0x10 )
[ 27.031874] [wifi1] FWLOG: [47622] WAL_DBGID_DEV_RESET ( 0x1, 0x1, 0x1 )
[ 27.044389] br0: port 1(eth0) entered blocking state
[ 27.044417] br0: port 1(eth0) entered disabled state
[ 27.044673] device eth0 entered promiscuous mode
[ 27.066791] br0: port 2(ath0) entered blocking state
[ 27.066811] br0: port 2(ath0) entered disabled state
[ 27.067101] device ath0 entered promiscuous mode
[ 27.082014] br0: port 3(ath1) entered blocking state
[ 27.082035] br0: port 3(ath1) entered disabled state
[ 27.082307] device ath1 entered promiscuous mode
[ 27.133587] IPv6: ADDRCONF(NETDEV_UP): br0: link is not ready
[ 27.144083] IPv6: ADDRCONF(NETDEV_UP): eth0: link is not ready
[ 27.220289] wlan_get_active_vport_chan: ch=0
[ 27.220312] [UNSPECIFIED] vap-0(ath0):osif_vap_init : register acs_event_handler
[ 27.220326] [UNSPECIFIED] vap-0(ath0):osif_vap_init : no acs, trigger scan
[ 27.220908] br0: port 2(ath0) entered blocking state
[ 27.220929] br0: port 2(ath0) entered forwarding state
[ 27.221043] IPv6: ADDRCONF(NETDEV_CHANGE): br0: link becomes ready
[ 27.221315] [UNSPECIFIED] _ieee80211_scan_unregister_event_handler: Failed to unregister evhandler=80684af0 arg=804e0000
[ 27.221315]
[ 27.221341] osif_vap_stop: Scan in progress.. Cancelling it. vap: 0x80590000
[ 27.230363] HSM: scan: transition IDLE => FOREIGN_CHANNEL
[ 27.261981] HSM: scan: transition FOREIGN_CHANNEL => IDLE
[ 27.281040] br0: port 2(ath0) entered disabled state
[ 27.289436] br0: port 3(ath1) entered blocking state
[ 27.289457] br0: port 3(ath1) entered forwarding state
[ 27.289706] br0: port 3(ath1) entered disabled state
[ 27.324227] [ath0] set svlan:1 assoc_stas:0 dvlan stas:0
[ 28.219959] ieee80211_ioctl_siwmode: imr.ifm_active=131712, new mode=3, valid=1
[ 28.305368] DEVICE IS DOWN ifname=ath0
[ 28.652713] DEVICE IS DOWN ifname=ath0
[ 28.658053] Warning: node not in table 0x8464a000
[ 28.710484] wlan_get_active_vport_chan: ch=0
[ 28.710507] [UNSPECIFIED] vap-0(ath0):osif_vap_init : register acs_event_handler
[ 28.710521] [UNSPECIFIED] vap-0(ath0):osif_vap_init : no acs, trigger scan
[ 28.748904] ar9300_set_interrupts: WARNING: ah_ier_ref_count is 0 and attempting to enable IER
[ 28.748936] HSM: scan: transition IDLE => FOREIGN_CHANNEL
[ 28.764958] br0: port 2(ath0) entered blocking state
[ 28.764980] br0: port 2(ath0) entered forwarding state
[ 28.970400] HSM: scan: transition FOREIGN_CHANNEL => FOREIGN_CHANNEL
[ 29.014150] eth0: link up (1000Mbps/Full duplex)
[ 29.014225] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
[ 29.014360] br0: port 1(eth0) entered blocking state
[ 29.014377] br0: port 1(eth0) entered forwarding state
[ 29.180334] HSM: scan: transition FOREIGN_CHANNEL => FOREIGN_CHANNEL
[ 29.188204] wevent_default_init
[ 29.264631] [UNSPECIFIED] _ieee80211_scan_unregister_event_handler: Failed to unregister evhandler=80684af0 arg=804e0000
[ 29.264631]
[ 29.264658] osif_vap_stop: Scan in progress.. Cancelling it. vap: 0x80590000
[ 29.286202] HSM: scan: transition FOREIGN_CHANNEL => IDLE
[ 29.306429] br0: port 2(ath0) entered disabled state
[ 29.313711] br0: port 3(ath1) entered blocking state
[ 29.313734] br0: port 3(ath1) entered forwarding state
[ 30.017214] Atheros AR8216/AR8236/AR8316 ag71xx-mdio.0:00: Port 2 is up
[ 37.022292] wevent_default_init
[ 125.039017] [wifi1] FWLOG: [148426] SCAN_ENGINE_START ( 0x1 )
[ 125.863675] Peer ID invalid!
[ 125.863695] Unable to process TX info
[ 125.913733] Peer ID invalid!
[ 125.913753] Unable to process TX info
[ 125.963804] Peer ID invalid!
[ 125.963825] Unable to process TX info
[ 126.013872] Peer ID invalid!
[ 126.013892] Unable to process TX info
[ 126.063931] Peer ID invalid!
[ 126.063951] Unable to process TX info
[ 126.163722] Peer ID invalid!
[ 126.163742] Unable to process TX info
[ 126.213803] Peer ID invalid!
[ 126.213823] Unable to process TX info
[ 126.263878] Peer ID invalid!
[ 126.263897] Unable to process TX info
[ 126.313949] Peer ID invalid!
[ 126.313969] Unable to process TX info
[ 126.364037] Peer ID invalid!
[ 126.364057] Unable to process TX info
[ 131.164558] process_tx_stats: 12 callbacks suppressed
[ 131.164575] Peer ID invalid!
[ 131.164584] ol_ath_get_all_stats: 12 callbacks suppressed
[ 131.164591] Unable to process TX info
[ 131.214642] Peer ID invalid!
[ 131.214663] Unable to process TX info
[ 131.264718] Peer ID invalid!
[ 131.264738] Unable to process TX info
[ 131.314795] Peer ID invalid!
[ 131.314815] Unable to process TX info
[ 131.364895] Peer ID invalid!
[ 131.364917] Unable to process TX info
[ 133.039742] [wifi1] FWLOG: [156013] WAL_DBGID_DEV_RESET ( 0x1, 0x1, 0x1 )
[ 133.039775] [wifi1] FWLOG: [156013] SCAN_EVENT_COMPLETED ( 0x1 )
[ 135.039877] [wifi1] FWLOG: [158240] WAL_DBGID_BB_WDOG_TRIGGERED ( 0x26a20, 0x4300000a, 0x0, 0x19 )
[ 136.039942] [wifi1] FWLOG: [159521] WAL_DBGID_BB_WDOG_TRIGGERED ( 0x26f21, 0x3300000a, 0x0, 0x20 )
[ 137.040012] [wifi1] FWLOG: [160311] WAL_DBGID_BB_WDOG_TRIGGERED ( 0x27237, 0x4300000a, 0x0, 0x23 )
[ 139.040145] [wifi1] FWLOG: [162014] WAL_DBGID_BB_WDOG_TRIGGERED ( 0x278de, 0x4300000a, 0x0, 0x2c )
[ 139.040181] [wifi1] FWLOG: [162229] WAL_DBGID_BB_WDOG_TRIGGERED ( 0x279b5, 0x4300000a, 0x0, 0x2d )
[ 139.040201] [wifi1] FWLOG: [162493] WAL_DBGID_BB_WDOG_TRIGGERED ( 0x27abd, 0x4300000a, 0x0, 0x2f )
[ 140.040200] [wifi1] FWLOG: [163203] WAL_DBGID_BB_WDOG_TRIGGERED ( 0x27d83, 0x4300000a, 0x0, 0x32 )
[ 141.040294] [wifi1] FWLOG: [164181] SCAN_ENGINE_START ( 0x1 )
[ 141.299464] Peer ID invalid!
[ 141.299484] Unable to process TX info
[ 141.349546] Peer ID invalid!
[ 141.349565] Unable to process TX info
[ 141.399621] Peer ID invalid!
[ 141.399640] Unable to process TX info
[ 141.450009] Peer ID invalid!
[ 141.450028] Unable to process TX info
[ 141.499426] Peer ID invalid!
[ 141.499446] Unable to process TX info
[ 141.549511] Peer ID invalid!
[ 141.549532] Unable to process TX info
[ 141.599545] Peer ID invalid!
[ 141.599566] Unable to process TX info
[ 141.649626] Peer ID invalid!
[ 141.649646] Unable to process TX info
[ 141.699467] Peer ID invalid!
[ 141.699487] Unable to process TX info
[ 141.749554] Peer ID invalid!
[ 141.749575] Unable to process TX info
[ 143.040419] [wifi1] FWLOG: [166520] WAL_DBGID_BB_WDOG_TRIGGERED ( 0x28a78, 0x4300000a, 0x0, 0x37 )
[ 145.040555] [wifi1] FWLOG: [169012] WAL_DBGID_BB_WDOG_TRIGGERED ( 0x29434, 0x4300000a, 0x0, 0x39 )
[ 147.040695] [wifi1] FWLOG: [170949] WAL_DBGID_DEV_RESET ( 0x1, 0x1, 0x1 )
[ 147.040728] [wifi1] FWLOG: [170949] SCAN_EVENT_COMPLETED ( 0x1 )
[ 149.040816] [wifi1] FWLOG: [172215] WAL_DBGID_BB_WDOG_TRIGGERED ( 0x2a0b7, 0x4300000a, 0x0, 0x40 )
[ 156.041791] [wifi1] FWLOG: [179981] SCAN_ENGINE_START ( 0x1 )
[ 156.679165] process_tx_stats: 38 callbacks suppressed
[ 156.679182] Peer ID invalid!
[ 156.679191] ol_ath_get_all_stats: 38 callbacks suppressed
[ 156.679198] Unable to process TX info
[ 156.729207] Peer ID invalid!
[ 156.729227] Unable to process TX info
[ 156.779288] Peer ID invalid!
[ 156.779308] Unable to process TX info
[ 156.829346] Peer ID invalid!
[ 156.829366] Unable to process TX info
[ 156.879417] Peer ID invalid!
[ 156.879436] Unable to process TX info
[ 156.979213] Peer ID invalid!
[ 156.979232] Unable to process TX info
[ 157.029288] Peer ID invalid!
[ 157.029308] Unable to process TX info
[ 157.079369] Peer ID invalid!
[ 157.079388] Unable to process TX info
[ 157.131128] Peer ID invalid!
[ 157.131148] Unable to process TX info
[ 157.179528] Peer ID invalid!
[ 157.179548] Unable to process TX info
[ 161.042621] [wifi1] FWLOG: [184768] WAL_DBGID_BB_WDOG_TRIGGERED ( 0x2d1c0, 0x4300000a, 0x0, 0x5a )
[ 161.980083] process_tx_stats: 9 callbacks suppressed
[ 161.980100] Peer ID invalid!
[ 161.980108] ol_ath_get_all_stats: 9 callbacks suppressed
[ 161.980115] Unable to process TX info
[ 162.030401] Peer ID invalid!
[ 162.030420] Unable to process TX info
[ 162.080480] Peer ID invalid!
[ 162.080500] Unable to process TX info
[ 162.130563] Peer ID invalid!
[ 162.130584] Unable to process TX info
[ 162.180635] Peer ID invalid!
[ 162.180655] Unable to process TX info
[ 164.042828] [wifi1] FWLOG: [187568] WAL_DBGID_DEV_RESET ( 0x1, 0x1, 0x1 )
[ 164.042870] [wifi1] FWLOG: [187568] SCAN_EVENT_COMPLETED ( 0x1 )
[ 166.042992] [wifi1] FWLOG: [189527] WAL_DBGID_BB_WDOG_TRIGGERED ( 0x2e457, 0x3300000a, 0x0, 0x63 )
[ 166.043028] [wifi1] FWLOG: [189706] WAL_DBGID_BB_WDOG_TRIGGERED ( 0x2e50a, 0x4300000a, 0x0, 0x64 )
[ 167.043042] [wifi1] FWLOG: [190776] WAL_DBGID_BB_WDOG_TRIGGERED ( 0x2e938, 0x4300000a, 0x0, 0x67 )
[ 168.043148] [wifi1] FWLOG: [192459] WAL_DBGID_BB_WDOG_TRIGGERED ( 0x2efcb, 0x4300000a, 0x0, 0x6d )
[ 172.043395] [wifi1] FWLOG: [195725] SCAN_ENGINE_START ( 0x1 )
[ 172.054157] Peer ID invalid!
[ 172.054177] Unable to process TX info
[ 172.104231] Peer ID invalid!
[ 172.104252] Unable to process TX info
[ 172.154309] Peer ID invalid!
[ 172.154329] Unable to process TX info
[ 172.204401] Peer ID invalid!
[ 172.204422] Unable to process TX info
[ 172.254470] Peer ID invalid!
[ 172.254490] Unable to process TX info
[ 172.404215] Peer ID invalid!
[ 172.404235] Unable to process TX info
[ 172.454306] Peer ID invalid!
[ 172.454326] Unable to process TX info
[ 172.504372] Peer ID invalid!
[ 172.504392] Unable to process TX info
[ 172.554473] Peer ID invalid!
[ 172.554493] Unable to process TX info
[ 173.004362] Peer ID invalid!
[ 173.004382] Unable to process TX info
[ 177.355140] process_tx_stats: 11 callbacks suppressed
[ 177.355156] Peer ID invalid!
[ 177.355165] ol_ath_get_all_stats: 11 callbacks suppressed
[ 177.355172] Unable to process TX info
[ 177.405220] Peer ID invalid!
[ 177.405241] Unable to process TX info
[ 177.455295] Peer ID invalid!
[ 177.455315] Unable to process TX info
[ 177.505385] Peer ID invalid!
[ 177.505406] Unable to process TX info
[ 177.555466] Peer ID invalid!
[ 177.555486] Unable to process TX info
[ 179.044365] [wifi1] FWLOG: [203312] WAL_DBGID_DEV_RESET ( 0x1, 0x1, 0x1 )
[ 179.044398] [wifi1] FWLOG: [203312] SCAN_EVENT_COMPLETED ( 0x1 )
[ 181.044495] [wifi1] FWLOG: [205390] WAL_DBGID_BB_WDOG_TRIGGERED ( 0x3224e, 0x4300000a, 0x0, 0x87 )
[ 187.044881] [wifi1] FWLOG: [211480] SCAN_ENGINE_START ( 0x1 )
[ 187.490211] Peer ID invalid!
[ 187.490231] Unable to process TX info
[ 187.540308] Peer ID invalid!
[ 187.540328] Unable to process TX info
[ 187.590372] Peer ID invalid!
[ 187.590392] Unable to process TX info
[ 187.640462] Peer ID invalid!
[ 187.640483] Unable to process TX info
[ 187.690157] Peer ID invalid!
[ 187.690177] Unable to process TX info
[ 187.740242] Peer ID invalid!
[ 187.740279] Unable to process TX info
[ 187.790572] Peer ID invalid!
[ 187.790591] Unable to process TX info
[ 187.840650] Peer ID invalid!
[ 187.840670] Unable to process TX info
[ 187.890202] Peer ID invalid!
[ 187.890222] Unable to process TX info
[ 187.940305] Peer ID invalid!
[ 187.940325] Unable to process TX info
[ 194.045377] [wifi1] FWLOG: [218248] WAL_DBGID_DEV_RESET ( 0x1, 0x1, 0x1 )
[ 194.045410] [wifi1] FWLOG: [218248] SCAN_EVENT_COMPLETED ( 0x1 )
[ 202.045973] [wifi1] FWLOG: [227225] SCAN_ENGINE_START ( 0x1 )
[ 202.866295] process_tx_stats: 39 callbacks suppressed
[ 202.866312] Peer ID invalid!
[ 202.866321] ol_ath_get_all_stats: 39 callbacks suppressed
[ 202.866328] Unable to process TX info
[ 202.916374] Peer ID invalid!
[ 202.916394] Unable to process TX info
[ 202.966440] Peer ID invalid!
[ 202.966460] Unable to process TX info
[ 203.016531] Peer ID invalid!
[ 203.016551] Unable to process TX info
[ 203.066236] Peer ID invalid!
[ 203.066255] Unable to process TX info
[ 203.116552] Peer ID invalid!
[ 203.116572] Unable to process TX info
[ 203.166640] Peer ID invalid!
[ 203.166661] Unable to process TX info
[ 203.216712] Peer ID invalid!
[ 203.216733] Unable to process TX info
[ 203.266277] Peer ID invalid!
[ 203.266298] Unable to process TX info
[ 203.316371] Peer ID invalid!
[ 203.316390] Unable to process TX info
[ 209.046332] [wifi1] FWLOG: [233993] WAL_DBGID_DEV_RESET ( 0x1, 0x1, 0x1 )
[ 209.046364] [wifi1] FWLOG: [233993] SCAN_EVENT_COMPLETED ( 0x1 )
[ 218.046921] [wifi1] FWLOG: [242970] SCAN_ENGINE_START ( 0x1 )
[ 218.194091] process_tx_stats: 40 callbacks suppressed
[ 218.194108] Peer ID invalid!
[ 218.194117] ol_ath_get_all_stats: 40 callbacks suppressed
[ 218.194124] Unable to process TX info
[ 218.242235] Peer ID invalid!
[ 218.242255] Unable to process TX info
[ 218.292314] Peer ID invalid!
[ 218.292334] Unable to process TX info
[ 218.342373] Peer ID invalid!
[ 218.342393] Unable to process TX info
[ 218.392440] Peer ID invalid!
[ 218.392460] Unable to process TX info
[ 218.492222] Peer ID invalid!
[ 218.492242] Unable to process TX info
[ 218.542297] Peer ID invalid!
[ 218.542317] Unable to process TX info
[ 218.592379] Peer ID invalid!
[ 218.592399] Unable to process TX info
[ 218.642461] Peer ID invalid!
[ 218.642481] Unable to process TX info
[ 218.692538] Peer ID invalid!
[ 218.692558] Unable to process TX info
[ 223.493107] process_tx_stats: 9 callbacks suppressed
[ 223.493125] Peer ID invalid!
[ 223.493134] ol_ath_get_all_stats: 9 callbacks suppressed
[ 223.493141] Unable to process TX info
[ 223.543196] Peer ID invalid!
[ 223.543218] Unable to process TX info
[ 223.593648] Peer ID invalid!
[ 223.593668] Unable to process TX info
[ 223.643356] Peer ID invalid!
[ 223.643376] Unable to process TX info
[ 223.695551] Peer ID invalid!
[ 223.695572] Unable to process TX info
[ 225.047345] [wifi1] FWLOG: [250557] WAL_DBGID_DEV_RESET ( 0x1, 0x1, 0x1 )
[ 225.047378] [wifi1] FWLOG: [250557] SCAN_EVENT_COMPLETED ( 0x1 )
[ 233.048081] [wifi1] FWLOG: [258836] SCAN_ENGINE_START ( 0x1 )
[ 233.686166] Peer ID invalid!
[ 233.686186] Unable to process TX info
[ 233.736255] Peer ID invalid!
[ 233.736276] Unable to process TX info
[ 233.786300] Peer ID invalid!
[ 233.786321] Unable to process TX info
[ 233.836381] Peer ID invalid!
[ 233.836401] Unable to process TX info
[ 233.886460] Peer ID invalid!
[ 233.886480] Unable to process TX info
[ 233.936174] Peer ID invalid!
[ 233.936196] Unable to process TX info
[ 233.986247] Peer ID invalid!
[ 233.986267] Unable to process TX info
[ 234.036334] Peer ID invalid!
[ 234.036354] Unable to process TX info
[ 234.086415] Peer ID invalid!
[ 234.086436] Unable to process TX info
[ 234.136218] Peer ID invalid!
[ 234.136238] Unable to process TX info
[ 240.048807] [wifi1] FWLOG: [265604] WAL_DBGID_DEV_RESET ( 0x1, 0x1, 0x1 )
[ 240.048845] [wifi1] FWLOG: [265604] SCAN_EVENT_COMPLETED ( 0x1 )
[ 246.049196] [wifi1] FWLOG: [272254] WAL_DBGID_BB_WDOG_TRIGGERED ( 0x4277e, 0x3300000a, 0x0, 0xac )
[ 249.049344] [wifi1] FWLOG: [274581] SCAN_ENGINE_START ( 0x1 )
[ 249.062248] process_tx_stats: 39 callbacks suppressed
[ 249.062265] Peer ID invalid!
[ 249.062274] ol_ath_get_all_stats: 39 callbacks suppressed
[ 249.062281] Unable to process TX info
[ 249.112562] Peer ID invalid!
[ 249.112583] Unable to process TX info
[ 249.162648] Peer ID invalid!
[ 249.162669] Unable to process TX info
[ 249.212730] Peer ID invalid!
[ 249.212750] Unable to process TX info
[ 249.262803] Peer ID invalid!
[ 249.262823] Unable to process TX info
[ 249.412327] Peer ID invalid!
[ 249.412347] Unable to process TX info
[ 249.462422] Peer ID invalid!
[ 249.462443] Unable to process TX info
[ 249.512485] Peer ID invalid!
[ 249.512505] Unable to process TX info
[ 249.563276] Peer ID invalid!
[ 249.563297] Unable to process TX info
[ 250.112568] Peer ID invalid!
[ 250.112588] Unable to process TX info
[ 254.363190] process_tx_stats: 9 callbacks suppressed
[ 254.363206] Peer ID invalid!
[ 254.363215] ol_ath_get_all_stats: 9 callbacks suppressed
[ 254.363222] Unable to process TX info
[ 254.413271] Peer ID invalid!
[ 254.413291] Unable to process TX info
[ 254.463347] Peer ID invalid!
[ 254.463366] Unable to process TX info
[ 254.513426] Peer ID invalid!
[ 254.513446] Unable to process TX info
[ 254.563502] Peer ID invalid!
[ 254.563522] Unable to process TX info
[ 255.049721] [wifi1] FWLOG: [281522] WAL_DBGID_BB_WDOG_TRIGGERED ( 0x44bb2, 0x4300000a, 0x0, 0xb8 )
[ 256.049787] [wifi1] FWLOG: [282168] WAL_DBGID_DEV_RESET ( 0x1, 0x1, 0x1 )
[ 256.049819] [wifi1] FWLOG: [282168] SCAN_EVENT_COMPLETED ( 0x1 )
[ 258.049917] [wifi1] FWLOG: [283991] WAL_DBGID_BB_WDOG_TRIGGERED ( 0x45557, 0x4300000a, 0x0, 0xbe )
[ 259.050010] [wifi1] FWLOG: [285049] WAL_DBGID_BB_WDOG_TRIGGERED ( 0x45979, 0x4300000a, 0x0, 0xc3 )
[ 264.050519] [wifi1] FWLOG: [289918] WAL_DBGID_BB_WDOG_TRIGGERED ( 0x46c7e, 0x4300000a, 0x0, 0xd6 )
[ 264.050556] [wifi1] FWLOG: [290327] SCAN_ENGINE_START ( 0x1 )
[ 264.489283] Peer ID invalid!
[ 264.489304] Unable to process TX info
[ 264.539372] Peer ID invalid!
[ 264.539392] Unable to process TX info
[ 264.589437] Peer ID invalid!
[ 264.589457] Unable to process TX info
[ 264.639521] Peer ID invalid!
[ 264.639541] Unable to process TX info
[ 264.689002] Peer ID invalid!
[ 264.689021] Unable to process TX info
[ 264.754076] Peer ID invalid!
[ 264.754095] Unable to process TX info
[ 264.789151] Peer ID invalid!
[ 264.789171] Unable to process TX info
[ 264.839230] Peer ID invalid!
[ 264.839249] Unable to process TX info
[ 264.889034] Peer ID invalid!
[ 264.889054] Unable to process TX info
[ 264.939123] Peer ID invalid!
[ 264.939143] Unable to process TX info
[ 270.050897] [wifi1] FWLOG: [296297] WAL_DBGID_BB_WDOG_TRIGGERED ( 0x48569, 0x4300000a, 0x0, 0xda )
[ 271.050945] [wifi1] FWLOG: [297095] WAL_DBGID_DEV_RESET ( 0x1, 0x1, 0x1 )
[ 271.050978] [wifi1] FWLOG: [297095] SCAN_EVENT_COMPLETED ( 0x1 )
[ 274.051134] [wifi1] FWLOG: [301048] WAL_DBGID_BB_WDOG_TRIGGERED ( 0x497f8, 0x4300000a, 0x0, 0xe2 )
[ 276.051264] [wifi1] FWLOG: [302349] WAL_DBGID_BB_WDOG_TRIGGERED ( 0x49d0d, 0x4300000a, 0x0, 0xe8 )
[ 279.051874] [wifi1] FWLOG: [306071] SCAN_ENGINE_START ( 0x1 )
[ 279.864357] process_tx_stats: 38 callbacks suppressed
[ 279.864374] Peer ID invalid!
[ 279.864383] ol_ath_get_all_stats: 38 callbacks suppressed
[ 279.864390] Unable to process TX info
[ 279.914443] Peer ID invalid!
[ 279.914463] Unable to process TX info
[ 279.964516] Peer ID invalid!
[ 279.964537] Unable to process TX info
[ 280.014602] Peer ID invalid!
[ 280.014622] Unable to process TX info
[ 280.064305] Peer ID invalid!
[ 280.064326] Unable to process TX info
[ 280.114385] Peer ID invalid!
[ 280.114406] Unable to process TX info
[ 280.164469] Peer ID invalid!
[ 280.164489] Unable to process TX info
[ 280.214550] Peer ID invalid!
[ 280.214570] Unable to process TX info
[ 280.264364] Peer ID invalid!
[ 280.264383] Unable to process TX info
[ 280.314446] Peer ID invalid!
[ 280.314465] Unable to process TX info
[ 286.051884] [wifi1] FWLOG: [312839] WAL_DBGID_DEV_RESET ( 0x1, 0x1, 0x1 )
[ 286.051916] [wifi1] FWLOG: [312839] SCAN_EVENT_COMPLETED ( 0x1 )
[ 287.052190] [wifi1] FWLOG: [313575] WAL_DBGID_BB_WDOG_TRIGGERED ( 0x4c8e7, 0x4300000a, 0x0, 0x10f )
[ 289.052327] [wifi1] FWLOG: [316465] WAL_DBGID_BB_WDOG_TRIGGERED ( 0x4d431, 0x4300000a, 0x0, 0x117 )
[ 295.052688] [wifi1] FWLOG: [321692] WAL_DBGID_BB_WDOG_TRIGGERED ( 0x4e89c, 0x4300000a, 0x0, 0x128 )
[ 295.052724] [wifi1] FWLOG: [321836] SCAN_ENGINE_START ( 0x1 )
[ 295.210245] process_tx_stats: 39 callbacks suppressed
[ 295.210283] Peer ID invalid!
[ 295.210293] ol_ath_get_all_stats: 39 callbacks suppressed
[ 295.210301] Unable to process TX info
[ 295.260317] Peer ID invalid!
[ 295.260338] Unable to process TX info
[ 295.310493] Peer ID invalid!
[ 295.310513] Unable to process TX info
[ 295.360480] Peer ID invalid!
[ 295.360500] Unable to process TX info
[ 295.410548] Peer ID invalid!
[ 295.410568] Unable to process TX info
[ 295.510526] Peer ID invalid!
[ 295.510546] Unable to process TX info
[ 295.560613] Peer ID invalid!
[ 295.560633] Unable to process TX info
[ 295.610680] Peer ID invalid!
[ 295.610700] Unable to process TX info
[ 295.660768] Peer ID invalid!
[ 295.660789] Unable to process TX info
[ 295.710846] Peer ID invalid!
[ 295.710866] Unable to process TX info
[ 300.611223] process_tx_stats: 5 callbacks suppressed
[ 300.611240] Peer ID invalid!
[ 300.611250] ol_ath_get_all_stats: 5 callbacks suppressed
[ 300.611257] Unable to process TX info
[ 300.661304] Peer ID invalid!
[ 300.661324] Unable to process TX info
[ 300.711375] Peer ID invalid!
[ 300.711395] Unable to process TX info
[ 300.761446] Peer ID invalid!
[ 300.761466] Unable to process TX info
[ 300.811504] Peer ID invalid!
[ 300.811523] Unable to process TX info
[ 302.053176] [wifi1] FWLOG: [329526] WAL_DBGID_DEV_RESET ( 0x1, 0x1, 0x1 )
[ 302.053208] [wifi1] FWLOG: [329526] SCAN_EVENT_COMPLETED ( 0x1 )
RJ-45 10/100/1000 Ethernet, 1 Secondary RJ-45 10/100/1000 Ethernet, 2x (?) UART, 1x USB
